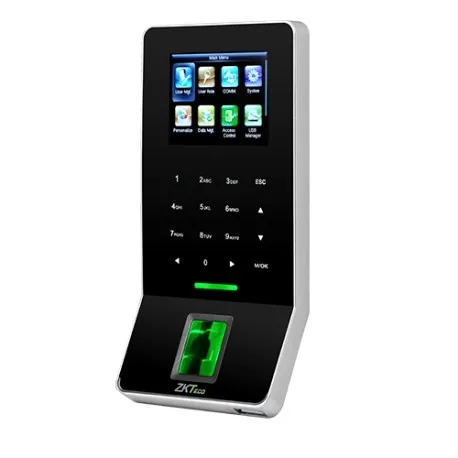

ZKTeco F22

F22 is an ultra-thin fingerprint time attendance and access control terminal with BioID sensor and Wi-Fi, which offers unparalleled performance with advanced algorithm for reliability, precision and excellent matching speed. F22 features the fastest commercial-based fingerprint matching algorithm and ZKTeco high-performance, high image quality infrared detection fingerprint sensor.

Features

• 2.4-inch TFT color screen and Touch keys

• Ultra thin and elegant design

• Full Access Control Features:

Anti-passback, access control interface for 3rd party electric lock, door sensor,  exit button, alarm

• Standard Wi-Fi

• Network interface by TCP/IP or RS485

• Built-in auxiliary input with enhanced flexibility to link with wired detector or emergency switch

• Multiple Verification Modes: Multi-verification methods (card is optional) providing user various choices

Parameters

• Display2.4-inch TFT LCD Color Screen
• Fingerprint Capacity3,000
• Card Capacity5000(Optional) ID or IC Card
• Transaction Capacity30,000
• SensorBioID Sensor / SilkID Sensor (optional)
• Algorithm VersionZKFinger V10.0
• CommunicationRS232/485, TCP/IP, USB-host, Wi-Fi
• Access Control Interface3rd Party Electric Lock, Door Sensor, Exit Button, Alarm
• Wiegand SignalInput, Output
• Aux. Input1ea for linkage function
• FunctionsDST, Automatic Status Switch, Record query, T9 input, 14 digit user ID, Anti-passback, Scheduled-Bell, Printer (Optional), ADMS (Optional)
• Power Supply12V DC, 3A
• Operating Temperature0 °C – 45 °C
• Operating Humidity20% – 80%
• Dimension158.5 x 78.0 x 19.4mm (LxWxH)
• SDK and SoftwarePUSH AC SDK, ZKBio Access software
