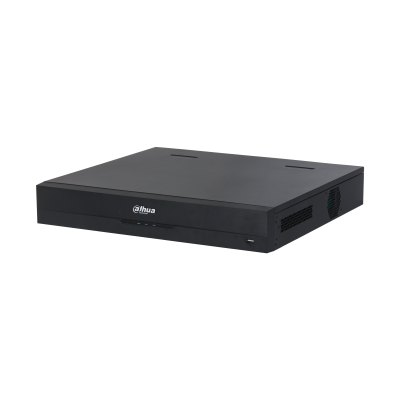

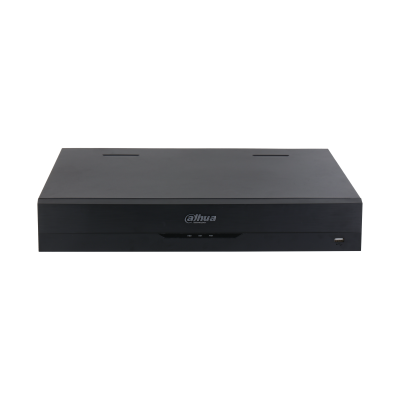

The DHI-NVR5464-EI is a 64-channel, 1.5U network video recorder from Dahua’s WizSense series, purpose-built for large-scale camera deployments that need serious channel capacity without moving into a full rack chassis. It’s a strong fit for enterprise sites managing dozens of cameras across multiple zones.
This recorder supports IP camera resolutions up to 32 MP and delivers a maximum decoding capability of 32 channels at 1080p@30fps, or 32 channels at 2MP@30fps. Bandwidth is rated at 384 Mbps for incoming, recording, and outgoing streams, scaling down to 200 Mbps when AI functions are active.
On the AI side, the DHI-NVR5464-EI handles 2-channel face detection and recognition, 4-channel perimeter protection, and 8-channel SMD Plus filtering onboard, supporting up to 20 face databases with 20,000 images. AcuPick smart search is available across up to 16 channels, combining recorder and camera-side detection for faster footage retrieval. Paired with compatible Dahua cameras, it also extends into ANPR, video metadata, stereo analysis, heat mapping, and people counting.
A key strength of this model is its dual video output configuration, with two independent HDMI and two VGA ports supporting heterogeneous and simultaneous display setups, along with multi-screen layouts reaching up to 64 channels on the main display. This makes it particularly well suited for large-scale control rooms monitoring extensive camera networks.
Storage is handled through four SATA bays, each supporting up to 16 TB, plus an eSATA port for external expansion and N+M clustering support. The recorder also supports multiple network binding modes including load balancing and fault tolerance for improved reliability.
Built on an industrial-grade processor with embedded Linux, the DHI-NVR5464-EI supports ONVIF, CGI, and SDK integration, along with third-party camera compatibility from brands including Axis, Sony, Panasonic, and Samsung.
For organizations managing very large camera counts who need maximum channel density, dual-display flexibility, and dependable AI-driven search, the DHI-NVR5464-EI delivers scalable, enterprise-grade performance.
DHI-NVR5464-EI System
| Feature | Specification |
| Main Processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| Operating Interface | Web, Local GUI |
DHI-NVR5464-EI AI & Analytics
| Feature | Specification |
| AI by Recorder | Face detection; face recognition; perimeter protection; SMD Plus |
| AI by Camera | Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map |
| AcuPick Performance (Camera + Recorder AI) | Max. 16-channel, 1 combined event per channel/s |
| Perimeter Performance (Recorder AI) | 4 channels, 10 IVS rules for each channel |
| Perimeter Performance (Camera AI) | 16 channels |
| Face Attributes | Gender; age group; glasses; expressions; face mask; beard |
| Face Detection Performance (Recorder AI) | 2 channels (up to 12 face images/s each channel) |
| Face Detection Performance (Camera AI) | 16 channels |
| Face Database Capacity | Up to 20 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image. |
| Face Recognition Performance (Recorder AI) |
1. 16-channel FD (by camera) + FR (by recorder), image stream: 16 face images/s
2. 2-channel FD (by recorder) + FR (by recorder), video stream: 12 face images/s
|
| Face Recognition Performance (Camera AI) | 16 channels |
| SMD Plus by Recorder | 8 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
| SMD Plus by Camera | 16 channels |
| Video Metadata (Camera AI) | 8 channels |
| Human Attributes | Top color, top type, bottom color, bottom type, hat, bag, age, gender and umbrella |
| Motor Vehicle Attributes | License plate, plate color, vehicle body, vehicle model, vehicle logo, calling, seatbelt, vehicle interior, vehicle registration location |
| Non-motor Vehicle Attributes | Vehicle model, vehicle color, number of persons, helmet |
| ANPR by Camera | 8 channels |
| License Plate Database Capacity |
1. Create up to 20,000 plate numbers.
2. Blocklist and allowlist
|
DHI-NVR5464-EI Audio and Video
| Feature | Specification |
| Access Channel | 64 channels |
| Network Bandwidth |
AI disabled: 384 Mbps incoming, 384 Mbps recording and 384 Mbps outgoing
AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing
|
| Resolution | 32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 5 MP; 4 MP; 1080p; 720p; D1; CIF; QCIF |
| Decoding Capability (AI Disabled) | 2-channel 32 MP@20 fps; 2-channel 24 MP@20 fps; 4-channel 16 MP@30 fps; 5-channel 12 MP@30 fps; 8-channel 8 MP@30 fps; 12-channel 5 MP@30 fps; 16-channel 4 MP@30 fps; 32-channel 1080p@30 fps |
| Decoding Capability (AI Enabled) | 1-channel 32 MP@20 fps; 1-channel 24 MP@20 fps; 2-channel 16 MP@30 fps; 4-channel 12 MP@30 fps; 4-channel 8 MP@30 fps; 8-channel 5 MP@30 fps; 12-channel 4 MP@30 fps; 24-channel 1080p@30 fps |
| Video Output |
2 VGA, 2 HDMI
• VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
• HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
(Heterogeneous video source output for HDMI1 and HDMI2; Simultaneous video source output for VGA1 and HDMI1; Simultaneous video source output for VGA2 and HDMI2)
|
| Multi-screen Display |
Main screen: 1/4/8/9/16/25/36/64
Sub screen: 1/4/8/9/16
|
| Third-party Camera Access | ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung |
DHI-NVR5464-EI Compression Standard
| Feature | Specification |
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
| Audio Compression | G.711a; G.711u; PCM; G726 |
DHI-NVR5464-EI Network
| Feature | Specification |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4/IPv6; UDP; SNMP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; PPPoE; FTP; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); Multicast; P2P; Auto Registration; iSCSI |
| Mobile Phone Access | iOS; Android |
| Interoperability | ONVIF 22.06 (Profile T; Profile S; Profile G); CGI; SDK |
| Browser | Chrome; IE; Safari; Edge; Firefox |
| Network Mode | Multi-address mode, load balance, fault tolerance and other network port binding modes |
DHI-NVR5464-EI Recording Playback & Storage
| Feature | Specification |
| Multi-channel Playback | Up to 16 channels |
| Record Mode | General, motion detection; intelligent; alarm; POS |
| Backup Method | USB device and network |
| Playback Mode | Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection) |
| Disk Group | YES |
DHI-NVR5464-EI Alarm
| Feature | Specification |
| General Alarm | Motion detection; privacy masking; local alarm |
| Anomaly Alarm | Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; abnormal behavior of fan; cybersecurity exception |
| Intelligent Alarm | Face detection; perimeter protection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map |
| Alarm Linkage | Record; snapshot (panoramic); local alarm output; IPC external alarm output; access controller; audio; buzzer; log, preset; email |

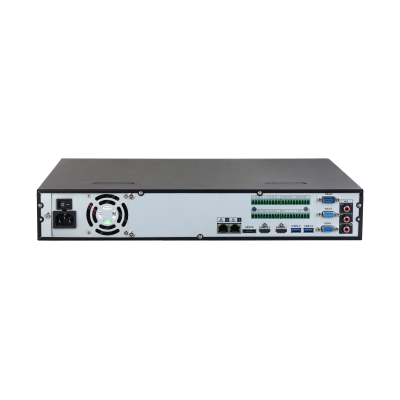

DHI-NVR5464-EI Port & Interfaces
| Feature | Specification |
| Audio Input | 1-channel RCA |
| Audio Output | 2-channel RCA |
| Alarm Input | 16 channels |
| Alarm Output | 6 channels (1-channel 12 V 1 A output) |
| HDD Interface | 4 SATA ports, each disk can contain up to 16 TB (limit varies depending on environment temperature) |
| eSATA | 1 port |
| RS-232 | 1 port |
| RS-485 | 1 port (half-duplex serial communication) |
| USB | 3 (1 front USB 2.0 port, 2 rear USB 3.0 ports) |
| HDMI | 2 |
| VGA | 2 |
| Network Port | 2 (10/100/1000 Mbps Ethernet port, RJ-45) |
DHI-NVR5464-EI General Specifications
| Feature | Specification |
| Power Supply | 100–240 VAC, 50–60 Hz |
| Power Consumption | Total output of NVR is ≤ 13 W (without HDD) |
| Net Weight | 4.74 kg (10.45 lb) |
| Gross Weight | 6.11 kg (13.47 lb) |
| Product Dimensions | 440.0 mm × 415.1 mm × 70.0 mm (17.32″ × 16.34″ × 2.76″) (W × D × H) |
| Packaging Dimensions | 530.0 mm × 500.0 mm × 210.0 mm (20.87″ × 19.69″ × 8.27″) (W × D × H) |
| Operating Temperature | –10 °C to +55 °C (14 °F to +131 °F) |
| Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Operating Humidity | 10%–93% (RH) |
| Installation | Rack or desktop |
| Certifications |
FCC: 47 CFR FCC Part15, SubpartB, Class A
CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014
CE-LVD: EN 62368-1:2014
UL: UL 62368-1, 2nd Ed
|
