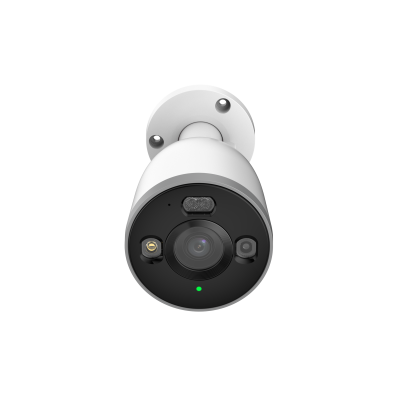

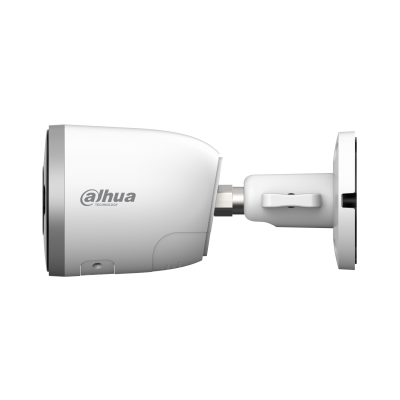

The Dahua F3D-PV is a 3MP fixed-focal Wi-Fi bullet network camera built for outdoor spaces that need dependable, discreet monitoring with a smart approach to night lighting. Its standout Smart Dual Light feature keeps the illuminator off during routine periods and automatically brightens into full color only when motion is detected, offering a more discreet monitoring experience than cameras that run bright lights continuously.
Image quality is solid throughout. The Dahua F3D-PV uses a 1/2.8″ CMOS sensor with a maximum resolution of 2304 x 1296, paired with an F1.6 aperture lens for strong low-light performance — minimum illumination reaches as low as 0.005 lux in color mode. Illumination distance extends up to 30 meters in both IR and warm-light modes, and Auto ICR day/night switching keeps the camera adapting automatically to changing conditions.
Flexibility in mounting is a key strength. With 360° rotation and 0° to 90° tilt, the Dahua F3D-PV can be aimed precisely at the area that matters most, whether that’s a driveway, entryway, or storefront. The wide field of view — up to 123° diagonal with the 2.8mm lens — helps capture broad coverage from a single fixed mounting point.

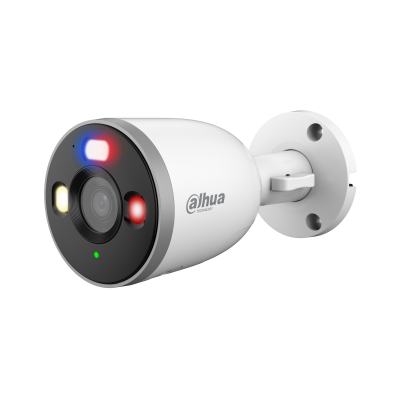

Security response is where this camera stands out. AI-based human and vehicle detection helps distinguish real activity from routine motion, and when an intruder is detected, the Dahua F3D-PV triggers an alert combining sound with a stronger red-and-blue light display, actively working to deter unwanted visitors rather than simply recording them.
Connectivity runs on 2.4GHz Wi-Fi (802.11b/g/n/ax) with fast Bluetooth pairing for simplified setup. The camera also supports ONVIF (Profile S, G, T) and CGI, giving it broad compatibility with third-party systems. Two-way communication is handled through a built-in mic and speaker, letting users respond directly to visitors or verbally deter unwanted activity.
Storage is managed locally through a microSD card supporting up to 256GB, with access available through Smart PSS Lite, DSS, or the DMSS app on iOS and Android.
Built for demanding outdoor conditions, the Dahua F3D-PV carries an IP67 rating — a step above standard outdoor cameras — and operates across an exceptionally wide range of -40°C to +60°C. Its metal-and-plastic casing adds durability for long-term outdoor use. At 0.34kg and measuring 158.3mm x Φ76.8mm, it’s compact enough for discreet mounting while remaining fully weatherproof, backed by CE-LVD, CE-EMC, and CE-RED certification.
F3D-PV Camera
| Specification | Details |
| Image Sensor | 1/2.8″ CMOS |
| Max. Resolution | 2304 (H) × 1296 (V) |
| Min. Illumination |
0.005 lux@F1.6 (Color, 30 IRE)
0.0005 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)
|
| Illumination Distance |
Up to 30 m (98.43 ft) (IR)
Up to 30 m (98.43 ft) (Warm light)
|
| Illuminator Number | 1 (IR LED); 1 (Warm light) |
| Angle Adjustment | Tilt: 0°–90°; Rotation: 0°–360° |
| Lens Type | Fixed-focal |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.6 |
| Field of View |
2.8 mm: H: 103°; V: 55°; D: 123°
3.6 mm: H: 85°; V: 46°; D: 100°
|
F3D-PV Intelligence
| Specification | Details |
| Human Detection | Yes |
| Vehicle Detection | Yes |
F3D-PV Audio and Video
| Specification | Details |
| Video Compression | H.264B; H.264; H.264H; H.265 |
| Video Frame Rate |
Main stream: 2304 × 1296@(1-25/30 fps)
Sub stream: 640 × 360@(1-25/30 fps)
|
| Video Bit Rate |
H.264: 32 kbps–4096 kbps
H.265: 32 kbps–4096 kbps
|
| Day/Night | Auto(ICR)/Color/B/W |
| WDR | DWDR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Image Rotation | 0°/180° |
| Built-in MIC | Yes, built-in Mic |
| Built-in Speaker | Yes, built-in speaker |
| Audio Compression | G.711a; G.711Mu; PCM |
F3D-PV Network
| Specification | Details |
| Network Port | RJ-45 (10/100 Base-T) |
| Wi-Fi | IEEE 802.11b/g/n/ax 2.4000–2.4835 GHz, 2.4 G, EIRP≤20 dBm |
| Wi-Fi Pairing | Bluetooth pairing |
| Interoperability | ONVIF (Profile S & Profile G & Profile T); CGI |
| Storage | Micro SD card (support max. 256 GB) |
| Management Software | Smart PSS Lite; DSS; DMSS |
| Mobile Client | Android; iOS |
F3D-PV General
| Specification | Details |
| Certifications |
CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
CE-RED: Radio Equipment Directive 2014/53/EU
|
| Power Supply | 12 VDC |
| Power Consumption |
Basic: 2.2 W (12 VDC)
Max.: 7.3 W (12 VDC) (H.265 + warm light intensity + sound and light alarm)
|
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Protection | IP67 |
| Camera Button | Reset button |
| Casing Material | Metal + plastic |
| Product Dimensions | 158.3 mm × Φ76.8 mm (6.23″ × Φ3.02″) |
| Net Weight | 0.34 kg (0.75 lb) |
