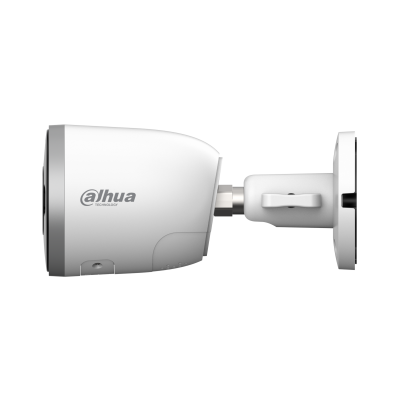

The Dahua F5D-PV is a 5MP fixed-focal Wi-Fi bullet camera built for reliable outdoor security. It combines sharp imaging, smart AI detection, and flexible wireless connectivity in one compact housing.
Powered by a 1/2.7″ CMOS sensor, the Dahua F5D-PV captures detailed footage at up to 2880 × 1620 resolution. Whether monitoring a driveway, storefront, or backyard, image clarity stays consistent day and night.
Wi-Fi 6 support gives this camera a clear edge over older wireless models. It delivers faster data transfer and stronger anti-interference performance, so the connection stays stable even in crowded network environments. Setup is simple too, thanks to fast Bluetooth pairing that gets the camera online in minutes.
Smart features set the Dahua F5D-PV apart from basic bullet cameras. Built-in AI enables accurate human and vehicle detection, cutting down on false alerts from blowing leaves or passing shadows. When a real event is detected, the camera triggers immediate alerts paired with a red-and-blue warning light and audible sound, actively deterring intruders rather than just recording them.
The smart dual-light system is another standout. Instead of running bright white light constantly, the camera stays discreet and switches to full color illumination only when motion is detected. This approach protects privacy during quiet hours while still delivering vivid color footage exactly when it matters.
Two-way audio is built in, with an integrated microphone and speaker allowing real-time communication with visitors, delivery drivers, or potential trespassers directly through the mobile app.
Built for tough conditions, the housing carries an IP67 rating and an operating range of −40°C to 60°C, making it suitable for extreme climates. The metal-and-plastic casing adds durability without excess weight, and tilt and rotation adjustments make positioning easy during installation.
Storage is flexible, supporting a microSD card up to 256GB alongside compatibility with Smart PSS Lite, DSS, and DMSS software, plus ONVIF interoperability for integration with broader security systems.
Whether protecting a home entrance or a small business perimeter, the Dahua F5D-PV delivers dependable, intelligent surveillance with minimal setup effort. Full specifications are listed below.
F5D-PV Camera
| Specification | Details |
| Image Sensor | 1/2.7″ CMOS |
| Max. Resolution | 2880 (H) × 1620 (V) |
| Min. Illumination |
0.007 lux@F1.6 (Color, 30 IRE)
0.0007 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)
|
| Illumination Distance |
Up to 30 m (98.43 ft) (IR)
Up to 30 m (98.43 ft) (Warm light)
|
| Illuminator Number | 1 (IR LED); 1 (Warm light) |
| Angle Adjustment | Tilt: 0°–90°; Rotation: 0°–360° |
| Lens Type | Fixed-focal |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.6 |
| Field of View |
2.8 mm: H: 104°; V: 56°; D: 124°
3.6 mm: H: 89°; V: 48°; D: 104°
|
F5D-PV Intelligence
| Specification | Details |
| Human Detection | Yes |
| Vehicle Detection | Yes |
F5D-PV Audio and Video
| Specification | Details |
| Video Compression | H.264B; H.264; H.264H; H.265 |
| Video Frame Rate |
Main stream: 2880 × 1620@(1-25/30 fps)
Sub stream: 640 × 360@(1-25/30 fps)
|
| Video Bit Rate |
H.264: 32 kbps–4096 kbps
H.265: 32 kbps–4096 kbps
|
| Day/Night | Auto(ICR)/Color/B/W |
| WDR | DWDR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Image Rotation | 0°/180° |
| Built-in MIC | Yes, built-in Mic |
| Built-in Speaker | Yes, built-in speaker |
| Audio Compression | G.711a; G.711Mu; PCM |
F5D-PV Network
| Specification | Details |
| Network Port | RJ-45 (10/100 Base-T) |
| Wi-Fi | IEEE 802.11b/g/n/ax 2.4000–2.4835 GHz, 2.4 G, EIRP≤20 dBm |
| Wi-Fi Pairing | Bluetooth pairing |
| Interoperability | ONVIF (Profile S & Profile G & Profile T); CGI |
| Storage | Micro SD card (support max. 256 GB) |
| Management Software | Smart PSS Lite; DSS; DMSS |
| Mobile Client | Android; iOS |
F5D-PV General
| Specification | Details |
| Certifications |
CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
CE-RED: Radio Equipment Directive 2014/53/EU
|
| Power Supply | 12 VDC |
| Power Consumption |
Basic: 2.4 W (12 VDC)
Max.: 7.5 W (12 VDC) (H.265 + warm light intensity + sound and light alarm)
|
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Protection | IP67 |
| Camera Button | Reset button |
| Casing Material | Metal + plastic |
| Product Dimensions | 158.3 mm × Φ76.8 mm (6.23″ × Φ3.02″) |
| Net Weight | 0.34 kg (0.75 lb) |
