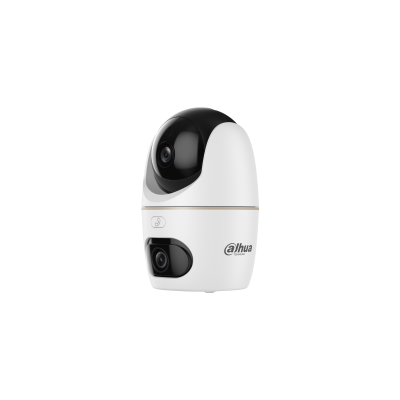

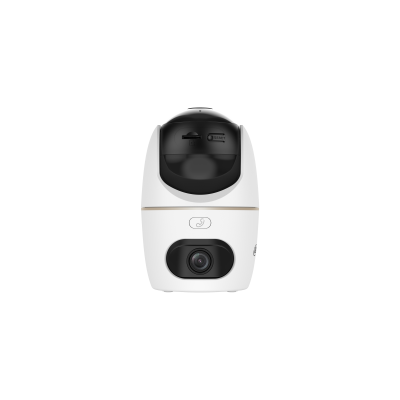

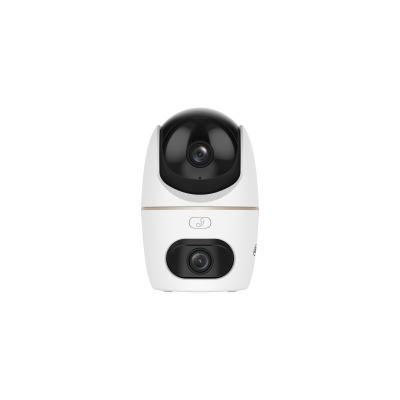

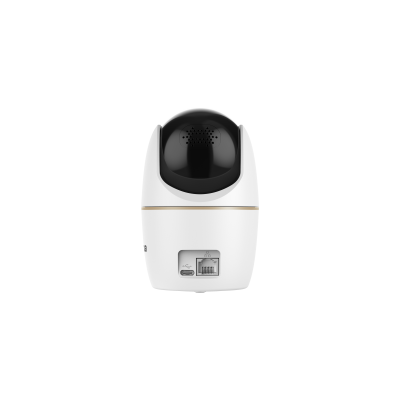

The Dahua H3D-3F is a 3+3MP indoor Wi-Fi dual-lens pan & tilt camera built for households that want wide-area awareness combined with close-up detail in a single device. It pairs a fixed lens with a separate pan & tilt lens, allowing coordinated monitoring that covers an entire room while still zooming in on specific activity.
Coverage is where the Dahua H3D-3F stands out. The fixed lens keeps a constant wide view of the space, while the PT lens rotates through 0° to 349° pan and -5° to 90° tilt, delivering a full 360° view without blind spots. Tapping anywhere on the close-up view within the app instantly triggers the PT lens to rotate to that exact spot, giving users hands-on control over what they want to inspect further.
Both lenses share a 1/3.2″ CMOS sensor with a maximum resolution of 2304 x 1296, encoded through H.265 compression for efficient bandwidth use. Illumination is strong across both lenses, with the PT lens reaching up to 50 meters in IR mode and 40 meters using warm light, ensuring clear visuals even in low-light indoor spaces.
Smart detection features add practical security value. AI-based human and vehicle detection helps reduce false alerts, while the camera can trigger immediate alerts using both sound and light to actively deter intruders — a step beyond simple notification-based systems. Abnormal sound detection adds another layer of awareness for unusual activity at home.
Connectivity is built for speed and reliability. The Dahua H3D-3F supports Wi-Fi 6 (802.11a/b/g/n/ac/ax) across both 2.4GHz and 5GHz bands, delivering high throughput with strong resistance to interference — a meaningful upgrade for homes with multiple connected devices. Setup is simplified through Bluetooth pairing, allowing fast connection without complex configuration steps.
Two-way communication is supported through a built-in mic and speaker, and the one-click proactive call feature lets users initiate a conversation instantly, useful for greeting visitors or checking on family members remotely. A dedicated privacy mode is also available for times when full monitoring isn’t needed.
Storage is handled locally through a microSD card supporting up to 256GB, with full access managed through the DMSS app on iOS and Android. Compact and lightweight at 233g, with dimensions of Φ80.9mm x 125.7mm, the Dahua H3D-3F fits easily into any home environment. It operates reliably between -10°C and +45°C, backed by CE certification for dependable everyday use.
H3D-3F Camera (2.8 mm + 6 mm) – Fixed Lens
| Specification | Details |
| Image Sensor | 1/3.2” CMOS |
| Max. Resolution | 2304 (H) × 1296 (V) |
| Illumination Distance | Up to 30 m (98.43 ft) (IR) |
| Illuminator Number | 2 (IR LED) |
| Angle Adjustment | 0° to 15° |
| Lens Type | Fixed-focal |
| Focal Length | 2.8 mm |
| Max. Aperture | F2.0 |
| Field of View | H: 90°; V: 50°; D: 105° |
H3D-3F Camera (2.8 mm + 6 mm) – PT Lens
| Specification | Details |
| Image Sensor | 1/3.2” CMOS |
| Max. Resolution | 2304 (H) × 1296 (V) |
| Illumination Distance |
Up to 50 m (164.04 ft) (IR) Up to 40 m (131.23 ft) (Warm light) |
| Illuminator Number | 2 (IR LED); 1 (Warm light) |
| Angle Adjustment | Pan: 0° to 349°; Tilt: –5° to 90° |
| Lens Type | Fixed-focal |
| Focal Length | 6 mm |
| Max. Aperture | F1.6 |
| Field of View | H: 44°; V: 24°; D: 52° |
H3D-3F Camera (3.6 mm + 3.6 mm) – Fixed Lens
| Specification | Details |
| Image Sensor | 1/3.2” CMOS |
| Max. Resolution | 2304 (H) × 1296 (V) |
| Illumination Distance | Up to 30 m (98.43 ft) (IR) |
| Illuminator Number | 2 (IR LED) |
| Angle Adjustment | 0° to 15° |
| Lens Type | Fixed-focal |
| Focal Length | 3.6 mm |
| Max. Aperture | F2.0 |
| Field of View | H: 79°; V: 43°; D: 94° |
H3D-3F Camera (3.6 mm + 3.6 mm) – PT Lens
| Specification | Details |
| Image Sensor | 1/3.2” CMOS |
| Max. Resolution | 2304 (H) × 1296 (V) |
| Illumination Distance |
Up to 30 m (98.43 ft) (IR) Up to 30 m (98.43 ft) (Warm light)
|
| Illuminator Number | 2 (IR LED); 1 (Warm light) |
| Angle Adjustment | Pan: 0° to 349°; Tilt: –5° to 90° |
| Lens Type | Fixed-focal |
| Focal Length | 3.6 mm |
| Max. Aperture | F2.0 |
| Field of View | H: 79°; V: 43°; D: 94° |
H3D-3F Intelligence
| Specification | Details |
| Human Detection | Yes |
| Pet Detection | Yes |
H3D-3F Audio and Video
| Specification | Details |
| Video Compression | H.265 |
| Video Frame Rate |
Main stream: 2304 × 1296 @ 15 fps Sub stream: 640 × 360 @ 15 fps |
| Video Bit Rate | H.265: 512 kbps–4096 kbps |
| Day/Night | Auto (ICR) / Color / B/W |
| WDR | DWDR |
| Motion Detection | Yes |
| Image Rotation | 0° / 180° |
| Built-in MIC | Yes, built-in Mic |
| Built-in Speaker | Yes, built-in speaker |
| Audio Compression | G.711a |
H3D-3F Network & Storage
| Specification | Details |
| Network Port | RJ-45 (10/100 Base-T) |
| Wi-Fi | IEEE 802.11a/b/g/n/ac/ax (2.4–2.4835 GHz & 5.15–5.25 GHz dual-band) |
| Wi-Fi Pairing | Bluetooth pairing |
| Storage | Micro SD card slot (support max. 256 GB) |
| Management Software | DMSS |
| Mobile Client | iOS, Android |
H3D-3F Functions
| Specification | Details |
| Abnormal Sound Alarm | Yes |
| Privacy Mode | Yes |
H3D-3F General Specifications
| Specification | Details |
| Certifications | CE |
| Power Supply | 5 VDC |
| Power Consumption |
Basic: 2.3 W Max: 5.2 W (pulling stream + IR + PT rotation) |
| Operating Temperature | –10 °C to +45 °C (–4 °F to +113 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Casing Material | Plastic |
| Product Dimensions | Φ80.9 mm × 125.7 mm (3.19″ × Φ4.95″) |
| Net Weight | 233 g (0.51 lb) |
