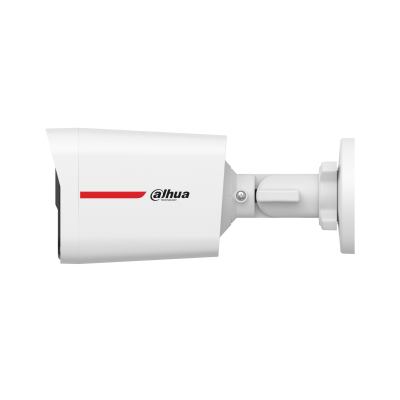

The HAC-HFW1549X-A-PRO is a 5MP WizColor HDCVI fixed-focal bullet camera from Dahua’s Lite series, built for installations that need sharp, full-colour surveillance day and night. Its bullet form factor and extended detection range make it a strong choice for perimeters, driveways, car parks, and building exteriors.
At the core of this camera is a 5MP CMOS sensor delivering 2880 × 1620 resolution in a native 16:9 format, paired with a large F1.0 aperture lens. Minimum illumination drops to 0.0001 lux, allowing the camera to keep producing colour imagery in conditions where standard cameras would fall back to monochrome.
WizColor technology is the defining feature. Instead of switching to infrared at night, the HAC-HFW1549X-A-PRO uses four warm-light LEDs with Smart Light+ processing to maintain 24/7 full-colour monitoring at an illumination distance of up to 50 metres. That means clothing colours, vehicle paintwork, and other identifying details stay visible after dark.
Detection range is a clear advantage of this model. With the 3.6 mm lens, DORI figures reach 78 metres for detection and 15.6 metres for recognition, giving it noticeably longer reach than comparable 2MP models. A 2.8 mm option is also available for wider 109.6° horizontal coverage where breadth matters more than distance.
Image processing includes 130 dB WDR, 3D noise reduction, and Dahua’s Super Adapt technology, all helping preserve detail in harsh backlit scenes such as gateways, loading bays, and shopfronts facing direct sunlight.
Built-in dual microphones with a 12-metre pick-up distance capture audio alongside video over the CVI channel, adding useful context to recorded incidents. Installation is straightforward too, with a single BNC port and DIP switch allowing CVI, TVI, AHD, or CVBS output selection to match almost any existing DVR.
Rated IP67 with an operating range of –40 °C to +60 °C and a metal front cover with metal bracket, the HAC-HFW1549X-A-PRO is built to handle demanding outdoor environments year-round.
For anyone upgrading an analogue system and wanting higher resolution, true full-colour night vision, and long-range coverage, the HAC-HFW1549X-A-PRO offers excellent value.
HAC-HFW1549X-A-PRO Camera
| Feature | Specification |
| Image Sensor | 5 MP CMOS |
| Max. Resolution | 2880 (H) × 1620 (V) |
| Scanning System | Progressive |
| Electronic Shutter Speed |
• PAL: 1/25 s–1/100,000 s
• NTSC: 1/30 s–1/100,000 s
|
| Min. Illumination |
• 0.0001 lux@F1.0 (Color, 30 IRE)
• 0 lux (Illuminator on)
|
| S/N Ratio | >65 dB |
| Illumination Distance | Warm light: 50 m (164.04 ft) |
| Illuminator On/Off Control | Auto / Manual |
| Illuminator Number | 4 (Warm light) |
| Angle Adjustment | Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360° |
HAC-HFW1549X-A-PRO Lens
| Feature | Specification |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.0 |
| Field of View |
• 2.8 mm: H: 109.6°; V: 57.5°; D: 131°
• 3.6 mm: H: 88.2°; V: 47.6°; D: 104.5°
|
| Iris Control | Fixed |
| Close Focus Distance |
• 2.8 mm: 2.0 m (6.56 ft)
• 3.6 mm: 3.0 m (9.84 ft)
|
| DORI Distance (2.8 mm) |
• Detect: 66.0 m (216.65 ft)
• Observe: 26.4 m (86.61 ft)
• Recognize: 13.2 m (43.31 ft)
• Identify: 6.6 m (21.65 ft)
|
| DORI Distance (3.6 mm) |
• Detect: 78.0 m (255.91 ft)
• Observe: 31.2 m (102.36 ft)
• Recognize: 15.6 m (51.18 ft)
• Identify: 7.8 m (25.59 ft)
|
HAC-HFW1549X-A-PRO Video
| Feature | Specification |
| Resolution | 5M (2880 × 1620); 4M (2560 × 1440); 960H (960 × 576 / 960 × 480); TVI 5M 16:9 (2960 × 1665) |
| Video Frame Rate |
• CVI:
PAL: 5M@25 fps; 5M@12.5 fps
NTSC: 5M@25 fps; 5M@10 fps
• AHD:
PAL: 4M@25 fps
NTSC: 4M@30 fps
• TVI:
PAL: 5M@20 fps
NTSC: 5M@20 fps
• CVBS:
PAL: 960H
NTSC: 960H
|
| Day/Night | Color |
| WDR | 130 dB |
| White Balance | Auto |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Illumination Mode | Smart Light |
| Motion Detection | Yes (controlled through the XVR) |
| Mirror | Yes (controlled through the XVR) |
HAC-HFW1549X-A-PRO Audio & Port
| Feature | Specification |
| Built-in Microphone | Yes, built-in dual Mic |
| Camera Audio | CVI |
| Pick-up Distance | 12 m (39.37 ft) |
| Video Output | Choices of CVI/TVI/AHD/CVBS by 1 BNC port (DIP Switch) |
HAC-HFW1549X-A-PRO Power
| Feature | Specification |
| Power Supply | 12 VDC (±30%) |
| Power Consumption | Max 5.8 W (12 VDC, LED on) |
HAC-HFW1549X-A-PRO Environment & Structure
| Feature | Specification |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | <95% (RH), non-condensing |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | <95% (RH), non-condensing |
| Ingress Protection | IP67 |
| Anti-corrosion Level | Basic Protection |
| Casing Material | Metal front cover + plastic rear barrel + metal bracket |
| Product Dimensions | 186.5 mm × 75 mm × 82.2 mm (7.34″ × 2.95″ × 3.24″) (L × W × H) |
| Weight |
Net: 0.35 kg (0.77 lb)
Gross: 0.49 kg (1.08 lb)
|
| Installation | Wall mount; ceiling mount; vertical pole mount |
HAC-HFW1549X-A-PRO Certifications
| Feature | Specification |
| Certifications |
• CE-LVD: EN 62368-1
• CE-EMC: EN 55032; EN 55035
|
