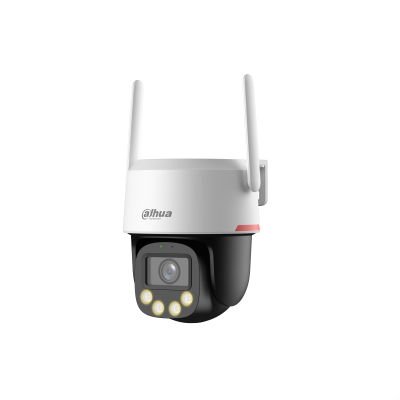

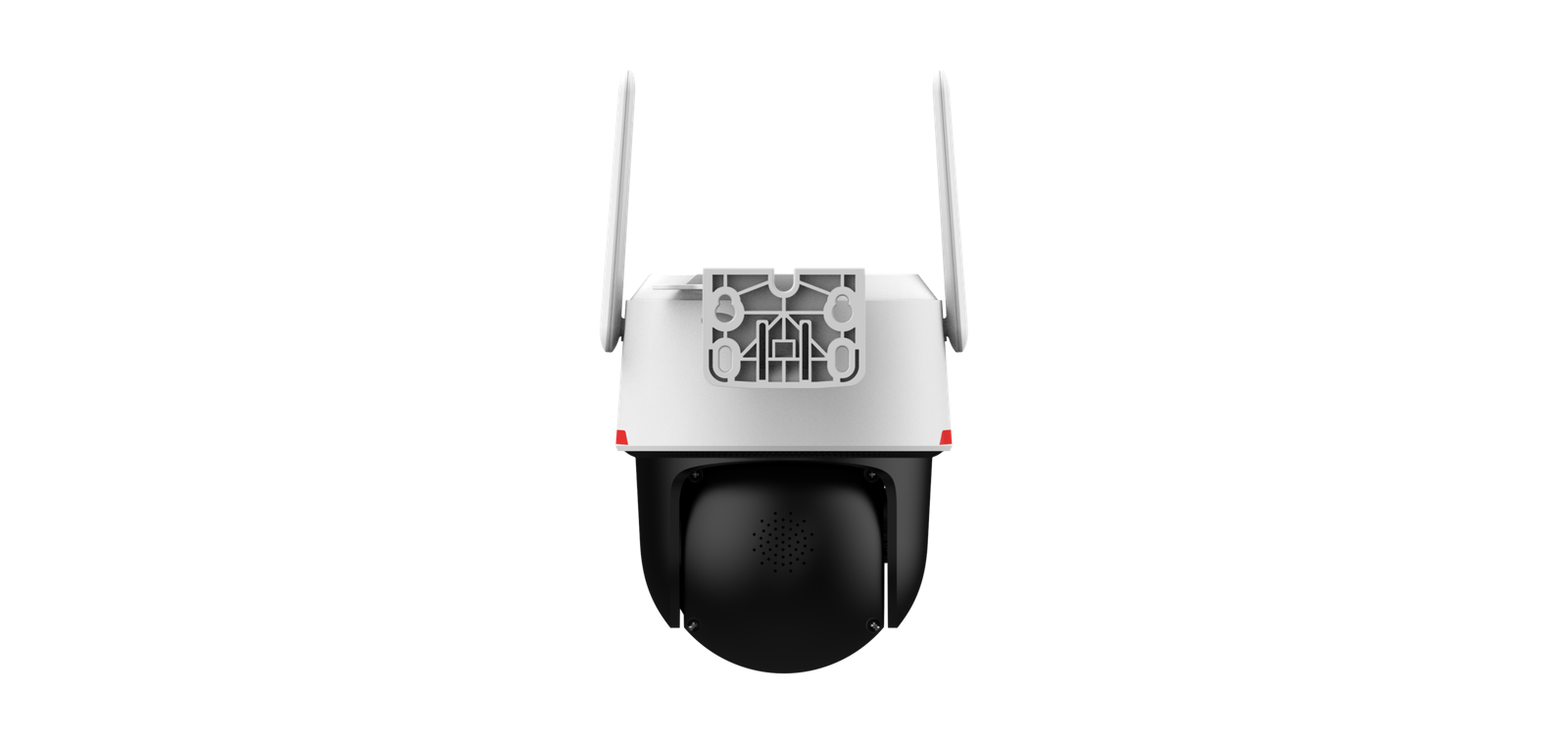

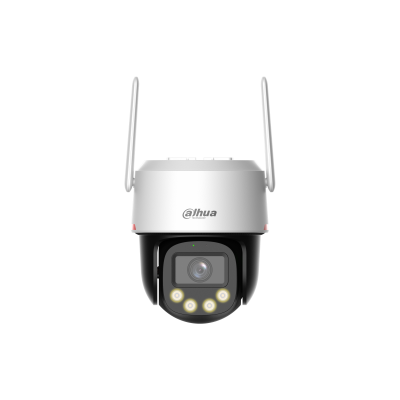

The Dahua P3F-PV is a 3MP WizColor outdoor Wi-Fi pan & tilt camera built for households that want vivid, full-color footage day and night, combined with complete outdoor coverage. With an F1.0 aperture lens and WizColor technology, this camera captures footage that stays bright and colorful even after dark, moving well beyond the grainy black-and-white video typical of standard night vision.
Low-light performance is a defining feature of the Dahua P3F-PV. Minimum illumination reaches an impressive 0.0005 lux in color mode, supported by four warm-light illuminators that extend visibility up to 30 meters. Combined with 120dB WDR, the camera also handles challenging lighting conditions like strong backlighting or sudden brightness changes without losing detail.
Coverage is equally strong. With pan rotation up to 345° and tilt up to 90°, the Dahua P3F-PV delivers a full 360° view of the monitored area without leaving blind spots. Automatic target tracking keeps the camera locked onto moving subjects as they cross the frame, whether that’s a person walking through the yard or a vehicle pulling into the driveway.
Smart detection adds real security value. AI-based human and vehicle detection helps the camera distinguish genuine activity from routine motion, reducing false alerts triggered by animals or shifting light. When an intruder is detected, the camera triggers immediate alerts using both sound and light, actively working to deter unwanted visitors rather than simply recording them.
Connectivity is built for speed and reliability. The Dahua P3F-PV supports Wi-Fi 6 (802.11b/g/n/ax) at 2.4GHz with a transmission rate up to 229 Mbps, delivering strong performance and interference resistance. Setup is simplified through Bluetooth pairing, and the camera also supports ONVIF (Profile S, G, T), CGI, and SDK for broader system compatibility.
Two-way communication runs through a built-in mic and speaker, letting users talk directly with visitors or verbally warn off intruders from anywhere. Storage is flexible too, supporting microSD cards up to 512GB as well as FTP upload, with management available through the DMSS app or a compatible NVR.
Built for serious outdoor durability, the Dahua P3F-PV carries an IP66 rating along with TVS 2000V lightning protection, surge protection, and voltage transient protection, and operates reliably from -30°C to +55°C. At 0.60kg and measuring 153.5mm x Φ129.3mm, it delivers dependable, full-color outdoor security backed by CE certification.
P3F-PV Camera
| Specification |
Details |
| Image Sensor |
1/2.8″ CMOS |
| Max. Resolution |
2304 (H) × 1296 (V) |
| Electronic Shutter Speed |
1 s–1/100,000 s |
| Min. Illumination |
0.0005 lux@F1.0 (Color, 30 IRE); 0 lux (Illuminator on) |
| Illumination Distance |
30 m (98.43 ft) (Warm light) |
| Illuminator Number |
4 (Warm light) |
P3F-PV Lens
| Specification |
Details |
| Focal Length |
3.6 mm |
| Max. Aperture |
F1.0 |
| Field of View |
H: 81.6°; V: 44.3°; D: 96.4° |
P3F-PV PTZ
| Specification |
Details |
| Pan/Tilt Range |
Pan: 0° to 345°; Tilt: 0° to 90° |
P3F-PV Smart Event
| Specification |
Details |
| Human Detection |
Yes |
| Vehicle Detection |
Yes |
P3F-PV Video
| Specification |
Details |
| Video Compression |
Smart H.265+; H.265; Smart H.264+; H.264B; H.264M; H.264H; MJPEG (Sub Stream 1) |
| Video Frame Rate |
Main stream: 3M/1080p/720p@(1–15 fps)
Sub stream 1: 640 × 360/QVGA@(1–15 fps)
|
| Day/Night |
Color/B/W |
| WDR |
120 dB |
| Motion Detection |
Yes |
| Image Rotation |
180° |
P3F-PV Audio
| Specification |
Details |
| Audio Compression |
PCM, G.711A, G.711Mu |
| Built-in MIC |
Yes |
| Built-in Speaker |
Yes |
P3F-PV Network
| Specification |
Details |
| Network Port |
RJ-45 (10/100 Base-T) |
| Wi-Fi Standard |
IEEE802.11b; IEEE802.11g; IEEE802.11n; IEEE802.11ax |
| Wi-Fi Frequency Range |
2.4 GHz |
| Wi-Fi Transmission Rate |
229 Mbps |
| Wi-Fi Pairing |
Bluetooth pairing |
| Max. Transmission Power |
≤20 dBm@2400–2483.5 MHz |
| Interoperability |
ONVIF (Profile S & Profile G & Profile T); CGI; SDK |
| Storage |
Micro SD card (Up to 512 GB); FTP |
| Management Software |
DMSS; NVR |
| Mobile Client |
iOS; Android |
P3F-PV Function
| Specification |
Details |
| Abnormal Sound Alarm |
Yes |
P3F-PV Certification
| Specification |
Details |
| Certifications |
CE |
P3F-PV Power
| Specification |
Details |
| Power Supply |
12 VDC, 1 A ± 10% |
| Power Consumption |
Basic: 3 W
Max. (Basic power consumption + WDR + Light on + PTZ operation): 9 W
|
P3F-PV Environment
| Specification |
Details |
| Operating Temperature |
–30 °C to +55 °C (–22 °F to +131 °F) |
| Operating Humidity |
≤95% |
| Protection |
IP66; TVS 2000 V lightning proof; surge protection; voltage transient protection |
P3F-PV Structure
| Specification |
Details |
| Product Dimensions |
153.5 mm × Φ129.3 mm (6.04″ × Φ5.09″) |
| Net Weight |
0.60 kg (1.32 lb) |
