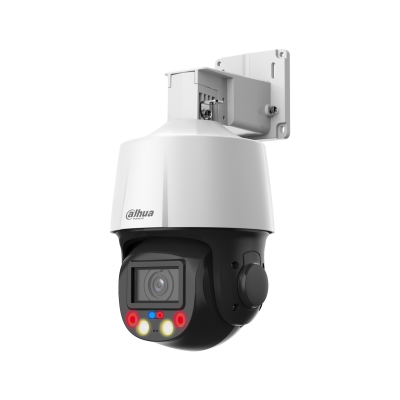

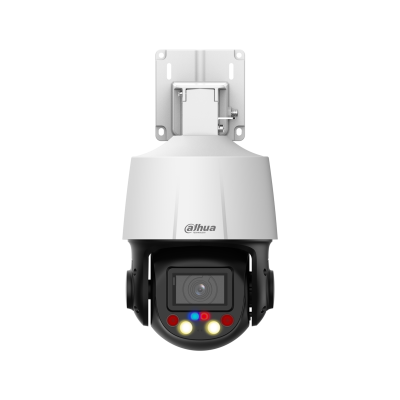

DH-SD3E205DB-GNY-A-PV1 is a 2MP WizSense network PTZ camera built for businesses and properties that need active, mobile surveillance with built-in deterrence capability. Featuring 5x optical zoom and TiOC (Traffic-in-One Camera) technology, this camera goes beyond passive recording to actively respond to detected threats in real time.
The DH-SD3E205DB-GNY-A-PV1 delivers 1920×1080 resolution through a 1/2.8″ CMOS sensor, with a 2.7mm–13.5mm varifocal lens offering a field of view from 99.6° down to 31.5° as it zooms. Low-light performance is strong, rated at 0.05 lux in color mode and full 0 lux with IR illumination active, supported by Smart Dual Light technology that extends visibility up to 50m with infrared and 30m with warm white light.
What sets the DH-SD3E205DB-GNY-A-PV1 apart is its active deterrence system. Rather than simply recording an incident, the camera can trigger audible sound alarms and red-and-blue light warnings when it detects a defined threat, actively driving intruders away before damage occurs. Sound warnings include 11 built-in alarm types plus support for up to 10 custom imported sounds, while light warnings run in configurable flash durations and frequencies.
Deep learning-based intelligence powers the DH-SD3E205DB-GNY-A-PV1’s core detection features, including human and vehicle classification through SMD 3.0, along with a full IVS perimeter protection suite covering tripwire, intrusion, fence-crossing, loitering, abandoned object, and people-gathering detection. Auto Tracking Lite and Auto Patrol let the camera automatically rotate toward a detected target and follow preset patrol routes when an alarm is triggered.
PTZ performance includes a 355° pan range and -15° to +90° tilt range, with support for up to 300 presets and 8 tours. Built-in two-way talk enables real-time communication with visitors or intruders on site, adding another layer of interactive security.
Built to withstand harsh environments, the DH-SD3E205DB-GNY-A-PV1 carries IP66 ingress protection along with TVS 6000V lightning and surge resistance, and operates reliably across a wide -30°C to +60°C temperature range. Power is supplied via 12VDC or PoE+ (802.3at), with video compression through Smart H.265+/H.264+ codecs for efficient storage.
For any property owner who needs more than passive footage — a car dealership lot, warehouse yard, or perimeter fence line — the DH-SD3E205DB-GNY-A-PV1 offers a genuinely proactive layer of protection.
DH-SD3E205DB-GNYAPV1 Camera
| Feature | Specification |
| Image Sensor | 1/2.8″ CMOS |
| Pixel | 2 MP |
| Max. Resolution | 1920 (H) × 1080 (V) |
| ROM | 128 MB |
| RAM | 512 MB |
| Electronic Shutter Speed | 1/1 s–1/30,000 s |
| Scanning System | Progressive |
| Min. Illumination |
• Color: 0.05 lux@F1.6
• B/W: 0.005 lux@F1.6
• 0 lux (IR light on)
|
| Illumination Distance |
• 50 m (164.04 ft) (IR)
• 30 m (98.43 ft) (Warm light)
|
| Illuminator On/Off Control | Zoom Prio; Manual; Auto; Off |
| Illuminator Number | 2 (IR), 2 (Warm light), 1 (Red light), 1 (Blue light) |
DH-SD3E205DB-GNYAPV1 Lens
| Feature | Specification |
| Focal Length | 2.7 mm–13.5 mm |
| Max. Aperture | F1.6–F3.0 |
| Field of View |
• H: 99.6°–31.5°
• V: 53°–17.8°
• D: 118.8°–36.2°
|
| Optical Zoom | 5× |
| Focus Control | Auto; semi-auto; manual |
| Close Focus Distance | 1.5 m (4.92 ft) |
| Iris Control | Fixed |
| DORI Distance |
• Detect: 186.2 m (610.89 ft)
• Observe: 73.5 m (241.14 ft)
• Recognize: 37.2 m (122.05 ft)
• Identify: 18.6 m (61.02 ft)
|
DH-SD3E205DB-GNYAPV1 PTZ
| Feature | Specification |
| Pan/Tilt Range | Pan: 0° to 355°, Tilt: –15° to +90° |
| Manual Control Speed | Pan: 0.1°/s–36°/s, Tilt: 0.1°/s–25.8°/s |
| Preset Speed | Pan: 35.7°/s; Tilt: 27.1°/s |
| Preset | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Auto Patrol | Triggers IVS rule when target is detected, rotating camera to target position and patrolling based on presets |
| Power-off Memory | Yes |
| Idle Motion | Preset; Tour |
| PTZ Locked | Yes |
DH-SD3E205DB-GNYAPV1 Intelligence
| Feature | Specification |
| IVS (Perimeter Protection) | Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification; linkage tracking |
| Face Detection | Supports face detection, snapshot, and face enhancement; face cutout (Face, one-inch photo); real-time capturing and quality-first strategies |
| Auto Tracking | Auto tracking Lite |
| SMD | SMD 3.0 |
DH-SD3E205DB-GNYAPV1 Active Deterrence
| Feature | Specification |
| Light Warning | Red and blue light warning (Flash duration: 5 s–30 s; Flash frequency: high, medium, low) |
| Sound Warning | 11 built-in sound alarms, supports importing up to 10 custom sound alarms (Playback: 1 to 10 times) |
DH-SD3E205DB-GNYAPV1 Video
| Feature | Specification |
| Video Compression | H.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG (Sub Stream); Smart H.264+ |
| Streaming Capability | 3 streams |
| Resolution | 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576); VGA (640 × 480); CIF (352 × 288) |
| Video Frame Rate |
• Main stream: 1080p/1.3M/720p @ (1–25/30 fps)
• Sub stream 1: D1/CIF/VGA @ (1–25/30 fps)
• Sub stream 2: 1080p/1.3M/720p @ (1–25/30 fps)
|
| Bit Rate Control | CBR/VBR |
| Video Bit Rate |
• H.264: 64 kbps–8192 kbps
• H.265: 25 kbps–6400 kbps
|
| Day/Night | Auto (ICR)/Color/B/W |
| BLC / HLC / WDR | BLC: Yes / HLC: Yes / WDR: 120 dB |
| White Balance | Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp |
| Gain Control | Auto; manual |
| Noise Reduction | 2D NR; 3D NR |
| Other Enhancements | Motion Detection, RoI, EIS (Electronic Image Stabilization), Electronic Defog |
| Digital Zoom | 16× |
| Image Rotation | 180° |
| S/N Ratio | ≥55 dB |
| Privacy Mask | Up to 24 areas (up to 8 areas in the same view; 8 colors available) |
DH-SD3E205DB-GNYAPV1 Audio
| Feature | Specification |
| Audio Compression | G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; PCM |
DH-SD3E205DB-GNYAPV1 Network
| Feature | Specification |
| Network Port | RJ-45 (10/100 Base-T) |
| Network Protocol | FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; SMB; HTTP; SSL; DHCP; SMTP; QoS; RTSP; ARP |
| Interoperability | CGI; SDK; ONVIF (Profile S&G&T); P2P |
| Streaming Method | Unicast/Multicast |
| User/Host | 20 (total bandwidth: 64 M) |
| Edge Storage | Micro SD card (up to 512 GB); FTP/SFTP; NAS |
| Browser | IE 9 and later, Chrome 41 and later, Firefox 50 and later, Safari 10 and later |
| Management Software | DMSS; DSS Pro |
| Mobile Client | iOS; Android |
DH-SD3E205DB-GNYAPV1 Port & Alarms
| Feature | Specification |
| Audio Input | 1 channel (LINE IN, bare wire / built-in mic, mutually exclusive) |
| Audio Output | 1 channel (LINE OUT, bare wire / built-in speaker, mutually exclusive) |
| Alarm I/O | 1 / 1 |
| Audio I/O | 1 / 1 |
| Alarm Linkage | Capture; recording; send email; preset; alarm digital input; audio; warning light |
| Alarm Event | Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
DH-SD3E205DB-GNYAPV1 Power
| Feature | Specification |
| Power Supply | 12 VDC, 2 A ± 10% / PoE+ (802.3at) |
| Power Consumption |
• Basic: 4.5 W
• Max.: 15 W (illuminator + PTZ + speaker + heating glass)
|
DH-SD3E205DB-GNYAPV1 Environment & Structure
| Feature | Specification |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity | ≤95% (RH) |
| Ingress Protection | IP66, TVS 6000 V lightning proof; surge protection; voltage transient protection |
| Product Dimensions | 142.6 mm × 140 mm × 236.1 mm (5.61″ × 5.51″ × 9.29″) |
| Weight |
Net: 1.5 kg (3.31 lb)
Gross: 2.1 kg (4.63 lb)
|
DH-SD3E205DB-GNYAPV1 Certification
| Feature | Specification |
| Certifications |
• CE: EN55032/EN55024/EN50130-4
• FCC: Part15 subpartB, ANSI C63.4-2014
|
