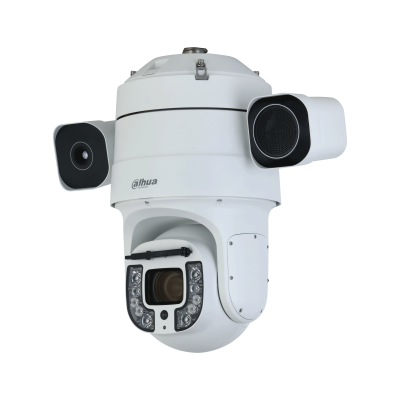

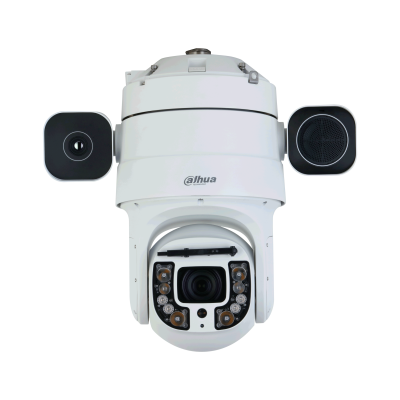

Dahua TPC-SDA8641 is a thermal network smart linkage camera designed for advanced perimeter protection and long-range surveillance. Featuring a dual PTZ structure with independently rotatable thermal and visible channels, this camera delivers powerful dual-sensor performance for both detection and identification tasks across large outdoor areas.
The thermal channel of the Dahua TPC-SDA8641 uses a vanadium oxide uncooled focal plane detector with 640 × 512 effective pixels, offering focal length options of 25 mm and 50 mm. With the 50 mm lens, the camera achieves perimeter protection coverage up to 350 m for human targets and 1,050 m for vehicles, making it ideal for securing expansive perimeters, borders, and critical infrastructure sites.
Paired with the thermal sensor, the Dahua TPC-SDA8641 includes a 4MP visible channel with 45x optical zoom and a focal length range of 5.5 mm–248 mm, enabling detailed visual confirmation once a target is flagged. Its smart linkage tracking automatically directs the visible channel to follow any target detected by the thermal channel, streamlining operator response and reducing missed events.
Illumination and alert capabilities further enhance the Dahua TPC-SDA8641’s usability in low-light and high-risk environments. The camera offers up to 250 m of infrared illumination distance, along with a built-in sound and white light alarm effective up to 200 m, allowing it to actively deter intrusions rather than simply record them.
Built for continuous outdoor operation, the Dahua TPC-SDA8641 carries an IP66-rated housing and functions reliably across a wide temperature range of -40°C to +65°C. It supports advanced intelligence features including tripwire and intrusion detection, human/vehicle classification, and multiple tracking modes such as single-scene, multi-scene, and panoramic tracking.
With robust connectivity through ONVIF, CGI, and Dahua SDK support, along with up to 512GB of local storage via micro SD card, the Dahua TPC-SDA8641 is a comprehensive solution for perimeter security, critical infrastructure protection, and wide-area monitoring applications that demand both detection range and image clarity.
TPC-SDA8641 Thermal
| Specification | Details |
| Detector Type | Vanadium oxide uncooled focal plane detector |
| Effective Pixels | 640 (H) × 512 (V) |
| Pixel Pitch | 17 μm |
| Spectral Range | 8 μm–14 μm |
| Sensitivity (NETD) | <35 mK (@f/1.0) |
| Focal Length | 25 mm; 50 mm |
| Field of View |
25 mm: H: 24.6°; V: 19.8°
50 mm: H: 12.4°; V: 9.9°
|
| Thermal Focus Control | Fixed-focal |
| Close Focus Distance |
25 mm: 1 m (3.28 ft)
50 mm: 1 m (3.28 ft)
|
| Digital Detail Enhancement (DDE) | Yes |
| Digital Zoom | 19 levels |
| Thermal AGC | Auto/Manual |
| Thermal Noise Reduction | 2D NR/3D NR |
| Image Flip | 180°; Mirror |
| Color Palettes | 18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald/spring/summer/autumn/winter) |
TPC-SDA8641 Visible
| Specification | Details |
| Image Sensor | 1/1.8″ CMOS |
| Max. Resolution | 2560 (H) × 1440 (V) |
| Pixel | 4 MP |
| Min. Illumination |
Color: 0.001 lux@F1.4
Black & white: 0.0001 lux@F1.4
0 lux (IR on)
|
| Visible AGC | Auto/Manual |
| Visible Noise Reduction | 2D NR/3D NR |
| S/N Ratio | ≥55 dB |
| White Balance | Auto; manual; indoor; outdoor; tracking; sodium lamp; street lamp; natural |
| Defog | Electronic defog |
| Electronic Shutter Speed | 1 s–1/30,000 s (auto/manual) |
| BLC | Yes |
| WDR | Yes |
| HLC | Yes |
| Digital Zoom | Yes |
| Day/Night | Auto (ICR); Color; B/W |
| Iris Control | Auto |
| Image Flip | 180° |
| Exposure Compensation | Yes |
| Visible Focus Control | Auto/semi-auto/manual |
| Focal Length | 5.5 mm–248 mm |
| Zoom Speed | ＜7 s |
| Field of View |
H: 61.8°–2.2°
V: 36.3°–1.3°
D: 69.2°–2.4°
|
| Close Focus Distance | 0.5 m–2 m (1.64 ft–6.56 ft) |
| Optical Zoom | 45× |
| Aperture | F1.4–F4.5 |
| Illuminator On/Off Control | Auto/Manual |
| Illumination Distance | 250 m (820.21 ft) |
TPC-SDA8641 Audio and Video
| Specification | Details |
| Video Compression | H.265; H.264; H.264H |
| Resolution |
Thermal:
Main stream: 1280 × 1024; 1280 × 960; 720p (1280 × 720); 400 × 300; 1280 × 960 (default)
Sub stream: 640 × 512; 640 × 480; 400 × 300; 400 × 300 (default)
Visible:
Main stream: 4 MP (2560 × 1440); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576); 1080p (default)
Sub stream: D1 (704 × 576); CIF (352 × 288); D1 (704 × 576) (default)
|
| Video Frame Rate |
Thermal:
Main stream: 1 fps–25 fps, 25 fps by default
Sub stream: 1 fps–25 fps, 15 fps by default
Visible:
Main stream: 1 fps–25 fps, 25 fps by default
Sub stream: 1 fps–25 fps, 15 fps by default
|
| Audio Compression | G.711a; G.711mu; PCM |
| Image Encoding Format | JPEG |
TPC-SDA8641 PTZ
| Specification | Details |
| Pan/Tilt Range |
Thermal:
Pan: 0° to +190°
Tilt: –5° to +180°
Visible:
Pan: 0° to 360°
Tilt: –30° to +90°
|
| Manual Control Speed |
Thermal:
Pan: 0.1°/s to 100°/s
Tilt: 0.1°/s to 90°/s
Visible:
Pan: 0.1°/s to 180°/s
Tilt: 0.1°/s to 100°/s
|
| Preset Speed |
Thermal:
Pan: 0.1°/s to 100°/s
Tilt: 0.1°/s to 90°/s
Visible:
Pan: 0.1°/s to 180°/s
Tilt: 0.1°/s to 100°/s
|
| Preset | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Power-off Memory | Yes |
| Privacy Masking | 4 by default |
| Idle Motion | Preset; Pattern; Tour; Scan; Horizontal Rotation |
TPC-SDA8641 Function
| Specification | Details |
| Two-way Audio | Yes |
| Sound and Light Alarm | Yes |
| Network Protocol | HTTPS; HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP |
| Region of Interest (RoI) | Yes (customizable) |
| Storage | Micro SD card |
| Micro SD Card (Max.) | 512 GB |
| Interoperability | ONVIF; CGI; DaHua SDK |
| Browser |
IE: IE8 and later
Chrome: 42 and earlier
Firefox: 42 and earlier
|
| User/Host | Up to 20 (total bandwidth: 64 MB) |
| Security | Authorized username and password; attached MAC address; HTTPS; IEEE 802.1x; controlled network access |
| User Management | Up to 20 users; supports multi-level user permissions (2 levels): management group and user group |
| Malfunction Detection | Network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
| PIP | Yes |
TPC-SDA8641 Intelligence
| Specification | Details |
| Cold/Hot Spot Trace | Yes |
| IVS (Perimeter Protection) | Yes. Supports tripwire and intrusion. |
| Target Distinction | Human/Vehicle Classification |
| Target Tracking | Single-scene tracking; multi-scene tracking; panoramic tracking; manual tracking; alarm linked tracking |
| Boat Detection | Yes |
TPC-SDA8641 Port
| Specification | Details |
| Network Port | 1 × RJ-45 (10/100 Base-T) |
| Alarm Input | 7 |
| Alarm Output | 2 |
| Audio Input | 1 |
| Audio Output | 1 |
| RS-485 | 1 |
TPC-SDA8641 Power
| Specification | Details |
| Power Supply | 36 VDC/5A ± 25% |
| Power Consumption |
Basic: 30 W
Max: 58 W (illuminator)
|
TPC-SDA8641 Environment & Reliability
| Specification | Details |
| Operating Temperature | –40 °C to +65 °C (–40 °F to +149 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Protection | IP66 |
| Reliability |
Surge protection: 6 kV
Air discharge: 15 kV
Contact discharge: 8 kV
|
| Anti-corrosion Level | Basic Protection |
TPC-SDA8641 Structure
| Specification | Details |
| Product Dimensions | 484.8 mm × 267 mm × 476.5 mm (19.09″ × 10.51″ × 18.76″) (L × W × H) |
| Packaging Dimensions | 708 mm × 380 mm × 580 mm (27.87″ × 14.96″ × 22.83″) (L × W × H) |
| Net Weight | 15.9 kg (35.05 lb) |
| Gross Weight | 21.5 kg (47.40 lb) |
TPC-SDA8641 Perimeter Protection Distance (IVS Distance)
| Focal Length | Distance (Vehicle) | Distance (Human) |
| 25 mm | 525 m (1,722.44 ft) | 175 m (574.15 ft) |
| 50 mm | 1,050 m (3,444.88 ft) | 350 m (1,148.29 ft) |
TPC-SDA8641 DRI Distance
| Focal Length | Detection Distance (Vehicle / Human) | Recognition Distance (Vehicle / Human) | Identification Distance (Vehicle / Human) |
| 25 mm |
Vehicle: 2,255 m (7,398.29 ft)
Human: 735 m (2,411.42 ft)
|
Vehicle: 564 m (1,850.39 ft)
Human: 184 m (603.67 ft)
|
Vehicle: 282 m (925.20 ft)
Human: 92 m (301.84 ft)
|
| 50 mm |
Vehicle: 4,510 m (14,796.59 ft)
Human: 1,471 m (4,826.12 ft)
|
Vehicle: 1,127 m (3,697.51 ft)
Human: 368 m (1,207.35 ft)
|
Vehicle: 564 m (1,850.39 ft)
Human: 184 m (603.67 ft)
|
