U7 Long-Range is a flagship, ceiling-mounted WiFi 7 access point built for businesses that want maximum wireless range and capacity in a compact disc form factor. With 5 spatial streams — more than any other model in the U7 lineup outside of larger deployments — this access point is designed for offices, retail spaces, and venues where extended signal reach genuinely matters.

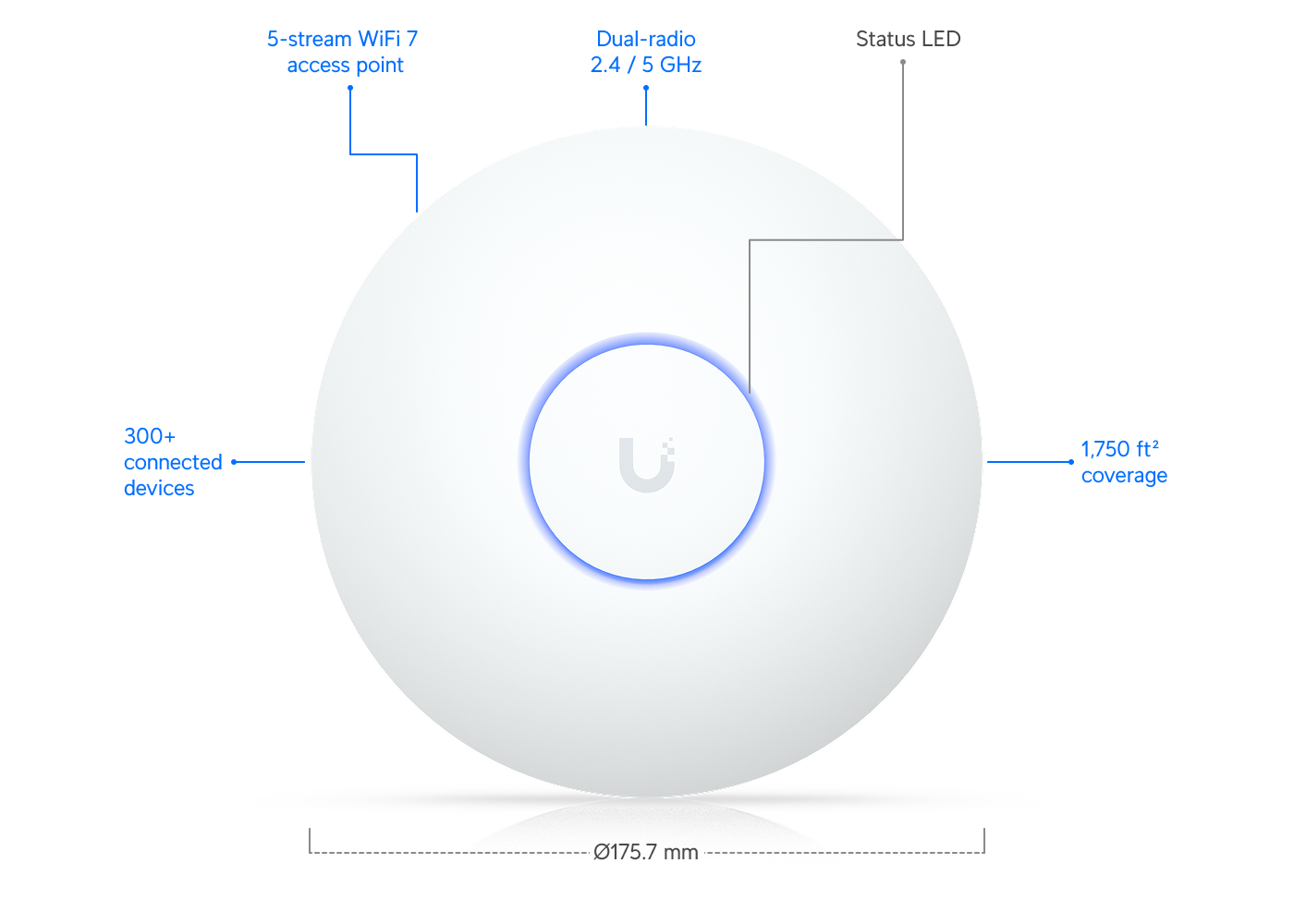

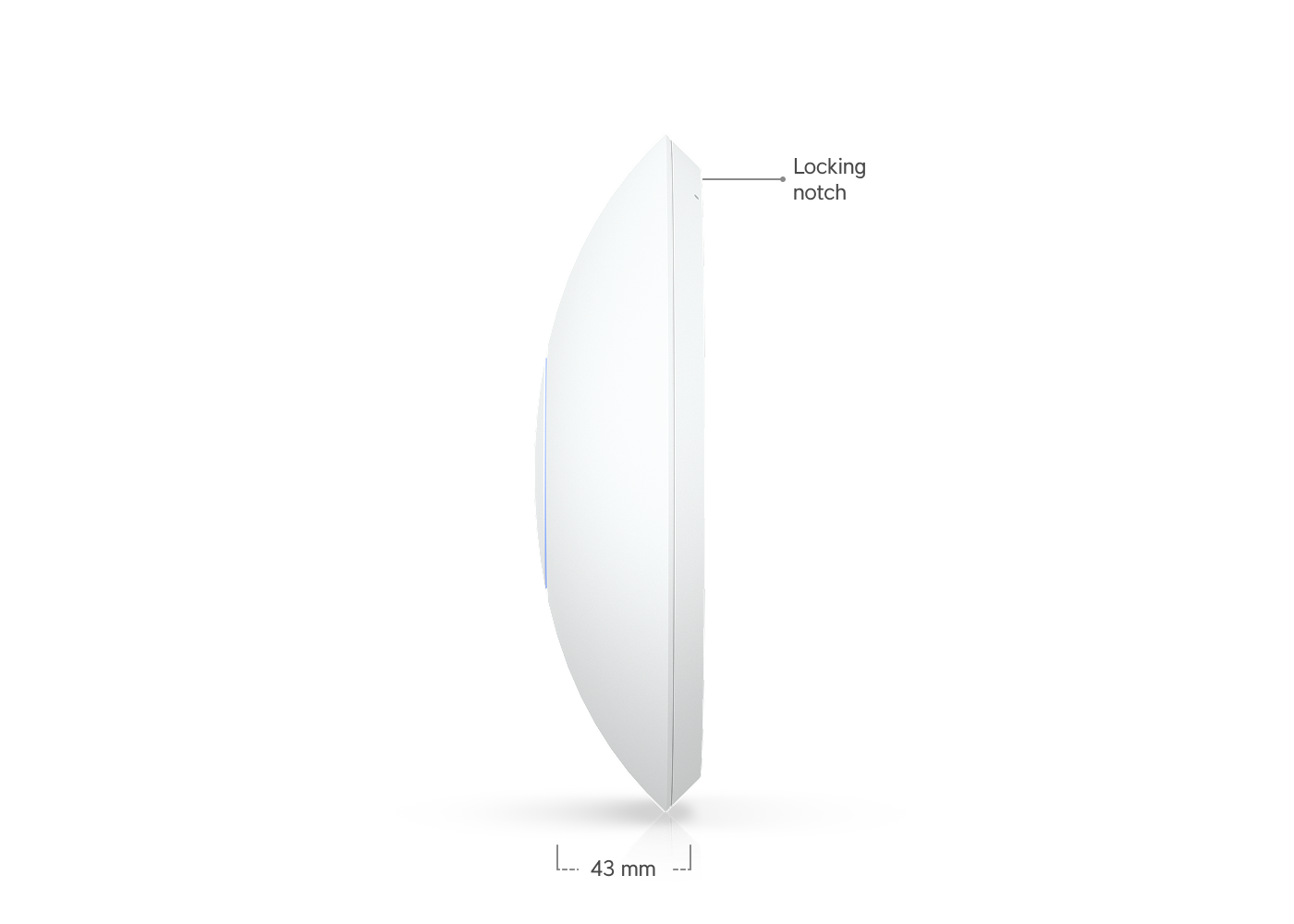

The U7 Long-Range features a compact ⌀175.7 x 43mm disc housing that mounts to a ceiling or wall using the included plastic mounting plate. It covers 160 m² (1,750 sq ft) per unit and supports 300+ simultaneous client connections, giving it strong capacity for busy commercial environments.
Performance is where the U7 Long-Range distinguishes itself from other compact WiFi 7 models. It supports 3×3 MU-MIMO on 5 GHz (compared to 2×2 on most other U7 access points) and 2×2 MU-MIMO on 2.4 GHz, reaching a maximum data rate of 4.3 Gbps on 5 GHz using 160 MHz channel bandwidth, and 688 Mbps on 2.4 GHz. Antenna gain reaches 6 dBi on 5 GHz and 4 dBi on 2.4 GHz, with a notably high max transmit power of 27 dBm on 5 GHz and 26 dBm on 2.4 GHz — contributing directly to the extended range this model is named for. Full backward compatibility covers 802.11ax, 802.11ac, and 802.11n client devices.

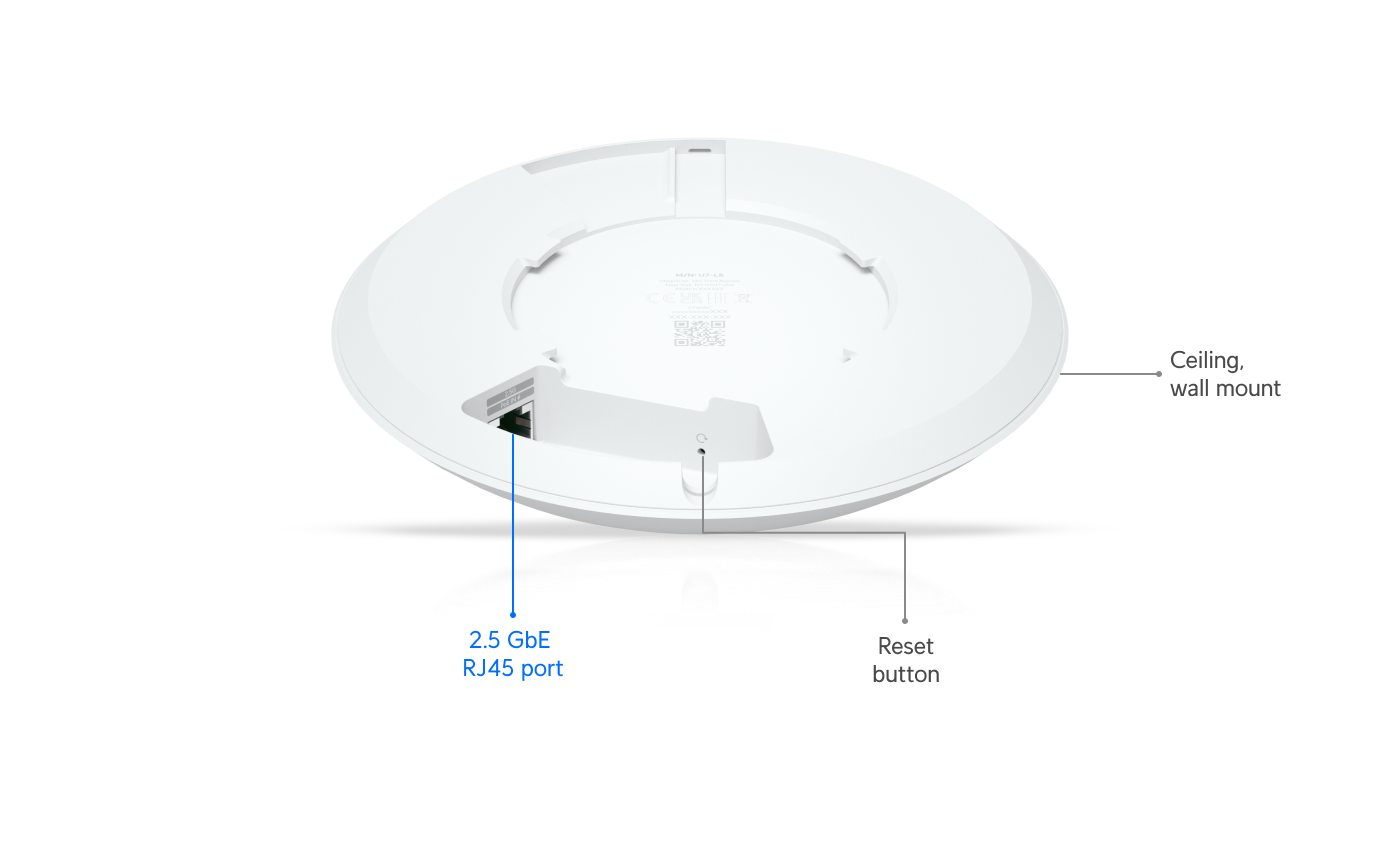

To match its high-throughput wireless performance, the U7 Long-Range includes a 2.5 GbE RJ45 uplink port, ensuring the wired connection doesn’t bottleneck fast WiFi 7 clients. The device carries UniFi’s complete feature set: wireless meshing, band steering, 802.11v BSS transition management, 802.11r fast roaming, 802.11k radio resource management, advanced radio management, and Passpoint (Hotspot 2.0) support.
For guest and public-facing WiFi, the U7 Long-Range includes a full captive hotspot portal with custom branding, voucher authentication, payment-based authentication, password authentication, and external portal server support. Additional security options include guest network isolation, private pre-shared key (PPSK) support, WiFi speed limiting, client device isolation, WiFi schedules, RADIUS over TLS (RadSec), and dynamic RADIUS-assigned VLAN.
Built with a polycarbonate and aluminum alloy enclosure and a galvanized steel (SGCC) mount, the U7 Long-Range weighs just 448g, keeping installation simple despite its enhanced performance profile. It operates across a -30°C to 50°C temperature range and is powered via PoE, drawing a maximum of 14W with a supported voltage range of 42.5–57V DC.
For businesses that need extended WiFi 7 range and higher per-client throughput from a single ceiling-mounted access point, the U7 Long-Range delivers genuinely superior reach, managed through the UniFi Network application and mobile app.
U7 Long-Range Overview
| Feature | Specification |
| Wi-Fi Standard | Wi-Fi 7 (802.11be) |
| Spatial Streams | 5 |
| Coverage Area | 160 m² (1,750 ft²) |
| Max. Client Count | 300+ |
| Uplink Interface | (1) 2.5 GbE RJ45 Port |
| Power Method | PoE (42.5–57V DC) |
| Mounting | Ceiling, Wall (Plastic mounting plate included) |
| Dimensions | ⌀175.7 mm × 43 mm (⌀6.9″ × 1.7″) |
U7 Long-Range Wireless & Performance
| Feature | Specification |
| MIMO |
• 5 GHz: 3 × 3 (DL/UL MU-MIMO) • 2.4 GHz: 2 × 2 (DL/UL MU-MIMO) |
| Max. Data Rates |
• 5 GHz: 4.3 Gbps (BW160) • 2.4 GHz: 688 Mbps (BW40) |
| Antenna Gain |
• 5 GHz: 6.0 dBi • 2.4 GHz: 4.0 dBi |
| Max. TX Power |
• 5 GHz: 27 dBm • 2.4 GHz: 26 dBm |
| Channel Bandwidths |
• HT: 20/40 MHz • VHT: 20/40/80/160 MHz • HE: 20/40/80/160 MHz • EHT: 20/40/80/160 MHz |
| Supported Data Rates |
• 802.11be (Wi-Fi 7): 7.3 Mbps to 4.3 Gbps (MCS0–MCS13 NSS1/2/3, EHT 20/40/80/160) • 802.11ax (Wi-Fi 6): 7.3 Mbps to 3.6 Gbps (MCS0–MCS11 NSS1/2/3, HE 20/40/80/160) • 802.11ac (Wi-Fi 5): 6.5 Mbps to 2.6 Gbps (MCS0–MCS9 NSS1/2/3, VHT 20/40/80/160) • 802.11n: 6.5 Mbps to 450 Mbps (MCS0–MCS23, HT 20/40) |
U7 Long-Range Advanced Features
| Category | Supported Features |
| Radio & Roaming | Wireless Meshing, Band Steering, 802.11k (RRM), 802.11r (Fast Roaming), 802.11v (BSS Transition Management), Advanced Radio Management |
| Access & Security | Passpoint (Hotspot 2.0), Private Pre-Shared Key (PPSK), Client Device Isolation, Guest Network Isolation, WiFi Speed Limiting, WiFi Schedules |
| RADIUS & Enterprise | RADIUS over TLS (RadSec), Dynamic RADIUS-assigned VLAN |
| Captive Hotspot Portal | Custom Branding Landing Page, Voucher Authentication, Payment-Based Authentication, External Portal Server Support, Password Authentication |
U7 Long-Range Hardware & Mechanical
| Feature | Specification |
| Max. Power Consumption | 14 W |
| Input Voltage Range | 42.5–57V DC |
| Management Interface | Ethernet |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Polycarbonate, galvanized steel (SGCC) |
| Status LEDs | System: White / Blue |
| Weight | 448 g (15.8 oz) |
| Ambient Operating Temperature | -30 to 50° C (-22 to 122° F) |
| Ambient Operating Humidity | 5 to 95% non-condensing |
U7 Long-Range Software & Compliance
| Feature | Specification |
| UniFi Network Application | Version 9.1.120 and later |
| Mobile App Support |
• iOS™ version 10.20.2 and later • Android™ version 10.21.7 and later |
| Compliance | NDAA Compliant |
| Certifications | CE, FCC, IC, SRRC, Anatel: 04071-25-08356 |
