U7 Pro is a flagship, ceiling-mounted WiFi 7 access point built for large-scale environments that need tri-band performance and genuinely interference-free wireless coverage. With 6 spatial streams and full 6 GHz band support, this model gives businesses access to a clean, uncongested spectrum alongside traditional 5 GHz and 2.4 GHz bands.

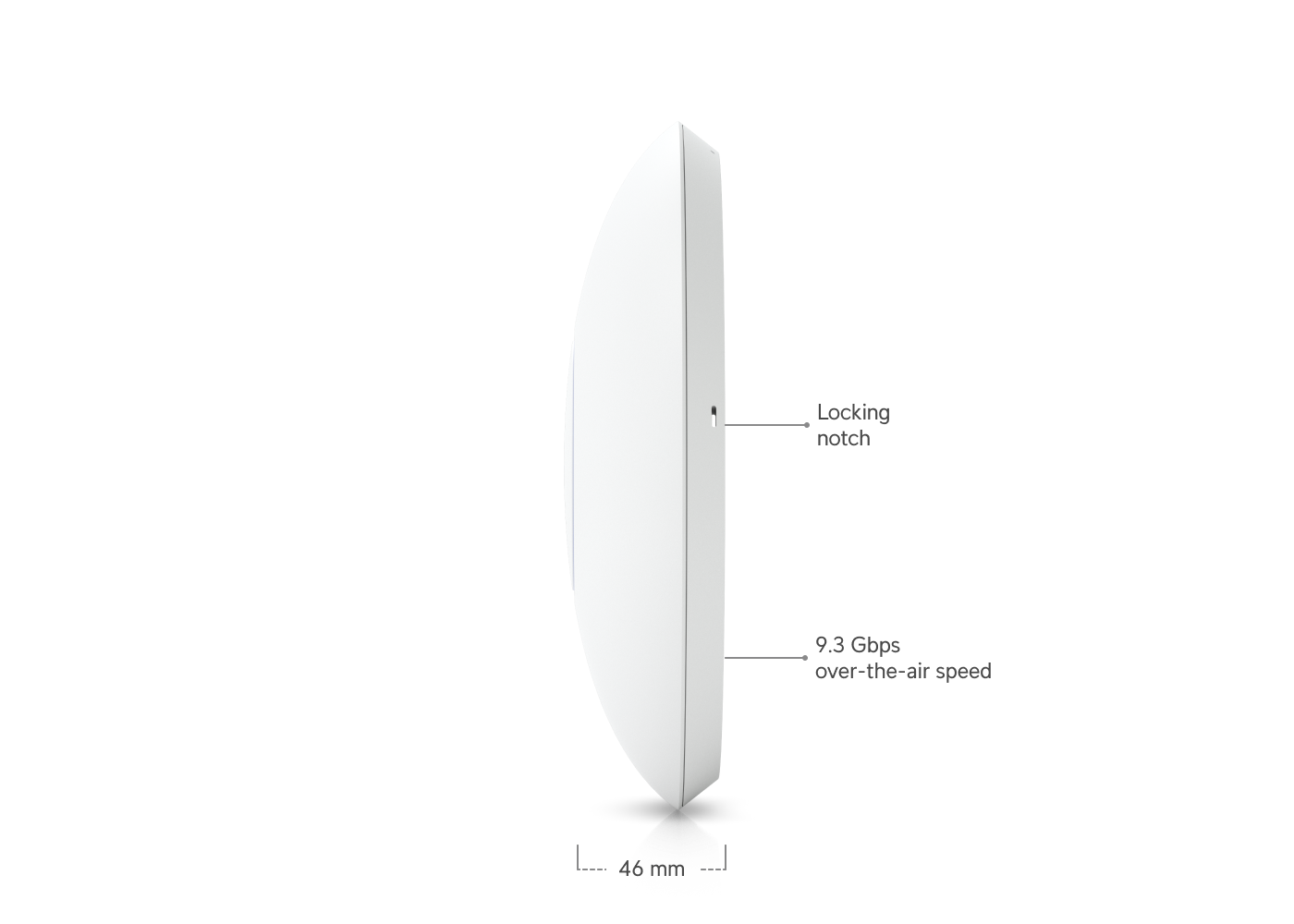

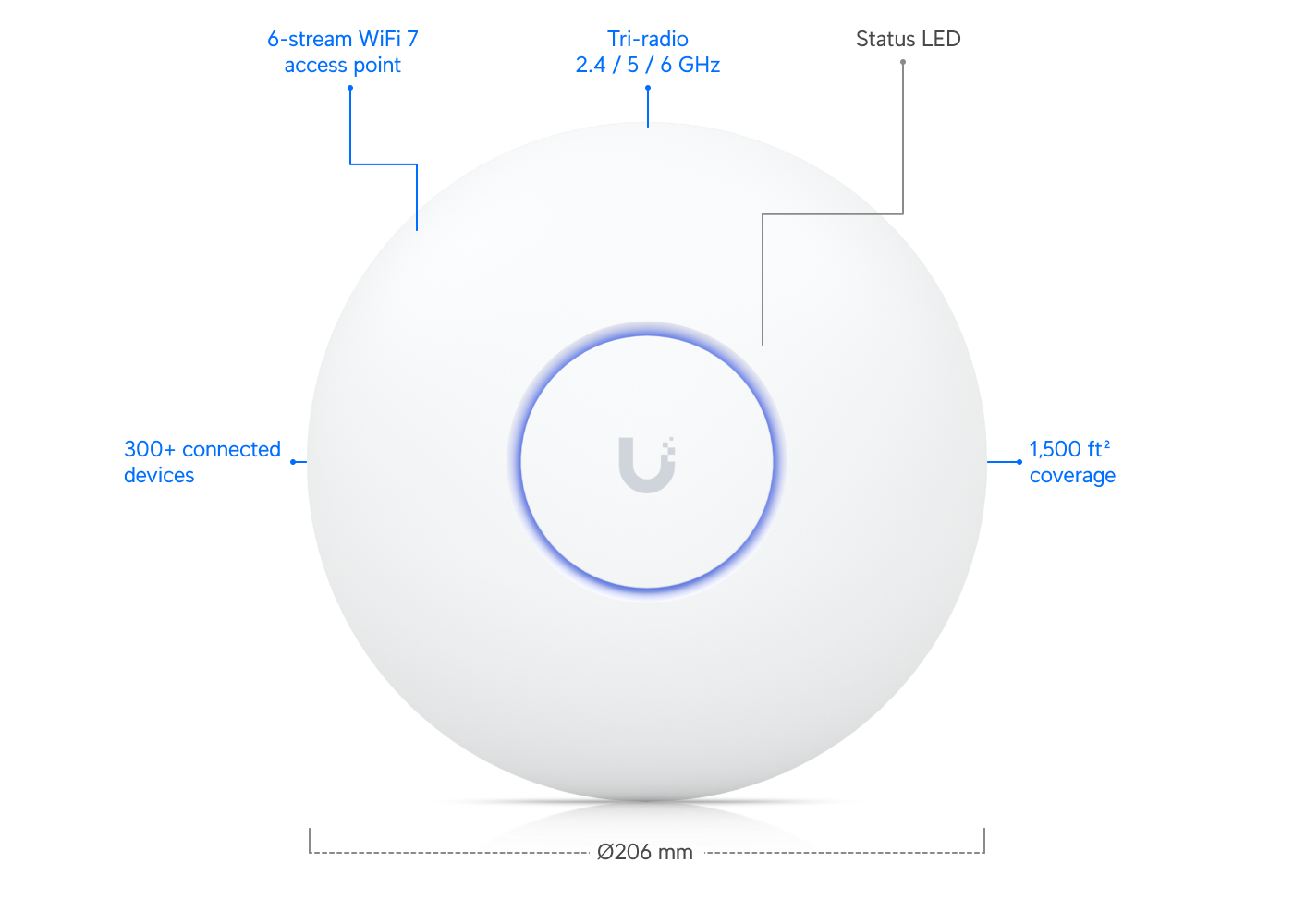

The U7 Pro features a ⌀206 x 46mm disc housing that mounts to a ceiling or wall using the included Pro Mount. It covers 140 m² (1,500 sq ft) per unit and supports 300+ simultaneous client connections, making it well suited for busy offices, conference centers, and large commercial venues.
Performance is genuinely tri-band, running 2×2 MU-MIMO across 6 GHz, 5 GHz, and 2.4 GHz simultaneously. On the 6 GHz band, the U7 Pro reaches an impressive 5.8 Gbps maximum data rate using 320 MHz channel bandwidth (BW320) — a speed tier only available on WiFi 7’s newly opened 6 GHz spectrum. The 5 GHz band reaches 4.3 Gbps (BW240), and 2.4 GHz reaches 688 Mbps. Antenna gain reaches 5.8 dBi on 6 GHz, 6 dBi on 5 GHz, and 4 dBi on 2.4 GHz, with full backward compatibility across 802.11ax (including WiFi 6E), 802.11ac, and 802.11n devices.

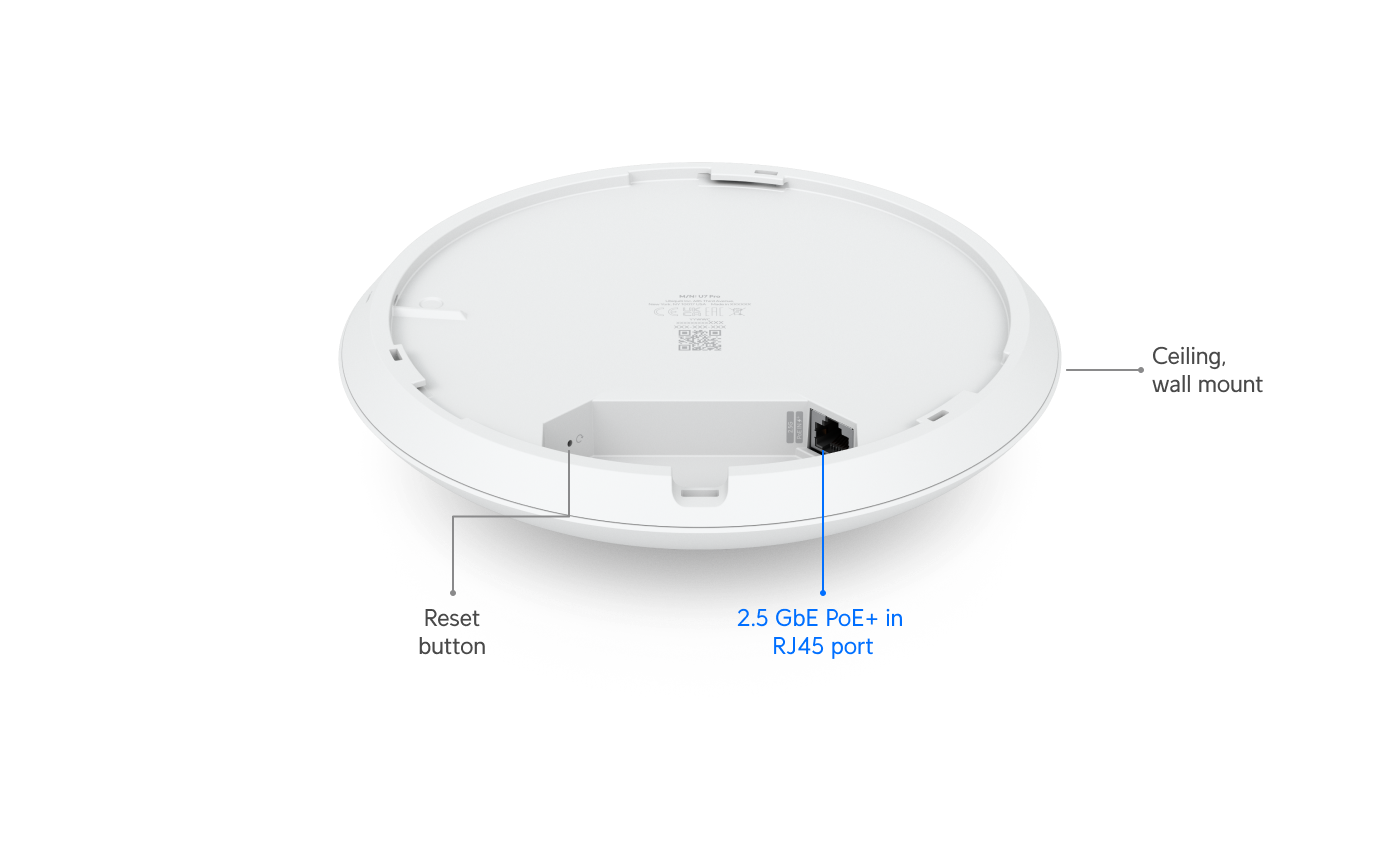

The U7 Pro includes a 1/2.5 GbE RJ45 uplink port to support its high wireless throughput, along with UniFi’s complete network management feature set: wireless meshing, band steering, 802.11v BSS transition management, 802.11r fast roaming, 802.11k radio resource management, advanced radio management, and Passpoint (Hotspot 2.0) support.
For guest and public-facing WiFi, the U7 Pro includes a full captive hotspot portal with custom branding, voucher authentication, payment-based authentication, password authentication, and external portal server support. Additional security options include guest network isolation, private pre-shared key (PPSK) support, WiFi speed limiting, client device isolation, WiFi schedules, RADIUS over TLS (RadSec), and dynamic RADIUS-assigned VLAN.
Built with a polycarbonate and metal enclosure and a stainless steel (SUS304) and galvanized steel mount, the U7 Pro weighs 680g. It operates across a -30°C to 40°C temperature range and is powered via PoE+, drawing a maximum of 21W with a supported voltage range of 44–57V DC.
For businesses operating in dense, interference-heavy environments — large offices, event venues, or campuses — the U7 Pro’s access to the clean 6 GHz band delivers genuinely more reliable performance than dual-band access points, all managed through the UniFi Network application.
U7 Pro Overview
| Feature | Specification |
| Wi-Fi Standard | Wi-Fi 7 (802.11be) |
| Spatial Streams | 6 |
| Coverage Area | 140 m² (1,500 ft²) |
| Max. Client Count | 300+ |
| Uplink Interface | (1) 1/2.5 GbE RJ45 Port |
| Power Method | PoE+ (44–57V DC) |
| Mounting | Ceiling, Wall (Pro Mount included) |
| Dimensions | ⌀206 mm × 46 mm (⌀8.1″ × 1.8″) |
U7 Pro Wireless & Performance
| Feature | Specification |
| MIMO |
• 6 GHz: 2 × 2 (DL/UL MU-MIMO)
• 5 GHz: 2 × 2 (DL/UL MU-MIMO)
• 2.4 GHz: 2 × 2 (DL/UL MU-MIMO)
|
| Max. Data Rates |
• 6 GHz: 5.8 Gbps (BW320)
• 5 GHz: 4.3 Gbps (BW240)
• 2.4 GHz: 688 Mbps (BW40)
|
| Antenna Gain |
• 6 GHz: 5.8 dBi
• 5 GHz: 6.0 dBi
• 2.4 GHz: 4.0 dBi
|
| Max. TX Power |
• 6 GHz: 23 dBm
• 5 GHz: 26 dBm
• 2.4 GHz: 23 dBm
|
| BSSID Capacity | 8 per radio |
| Channel Bandwidths |
• HT: 20/40 MHz
• VHT: 20/40/80/160 MHz
• HE: 20/40/80/160 MHz
• EHT: 20/40/80/160/240/320 MHz
|
| Supported Data Rates |
• 802.11be (Wi-Fi 7): 7.3 Mbps to 5.8 Gbps (MCS0–MCS13 NSS1/2, EHT 20/40/80/160/240/320)
• 802.11ax (Wi-Fi 6/6E): 7.3 Mbps to 2.4 Gbps (MCS0–MCS11 NSS1/2, HE 20/40/80/160)
• 802.11ac (Wi-Fi 5): 6.5 Mbps to 1.7 Gbps (MCS0–MCS9 NSS1/2, VHT 20/40/80/160)
• 802.11n: 6.5 Mbps to 300 Mbps (MCS0–MCS15, HT 20/40)
|
| Operating Frequency (US/CA) |
• 2.4 GHz: 2400–2472 MHz
• 5 GHz: U-NII-1 (5150–5250 MHz), U-NII-2A (5250–5350 MHz), U-NII-2C (5470–5725 MHz), U-NII-3 (5725–5850 MHz)
• 6 GHz: U-NII-5 to U-NII-8 (5925–7125 MHz)
|
| Operating Frequency (Worldwide) |
• 2.4 GHz: 2400–2483.5 MHz
• 5 GHz: 5150–5850 MHz
• 6 GHz: 5925–7125 MHz
|
U7 Pro Advanced Features
| Category | Supported Features |
| Radio & Roaming | Wireless Meshing, Band Steering, 802.11k (RRM), 802.11r (Fast Roaming), 802.11v (BSS Transition Management), Advanced Radio Management |
| Access & Security | Passpoint (Hotspot 2.0), Private Pre-Shared Key (PPSK), Client Device Isolation, Guest Network Isolation, WiFi Speed Limiting, WiFi Schedules |
| RADIUS & Enterprise | RADIUS over TLS (RadSec), Dynamic RADIUS-assigned VLAN |
| Captive Hotspot Portal | Custom Branding Landing Page, Voucher Authentication, Payment-Based Authentication, External Portal Server Support, Password Authentication |
U7 Pro Hardware & Mechanical
| Feature | Specification |
| Max. Power Consumption | 21 W |
| Input Voltage Range | 44–57V DC |
| Networking Interface | (1) 1/2.5 GbE RJ45 port |
| Management Interface | Ethernet |
| Enclosure Material | Polycarbonate, metal |
| Mount Material | Stainless steel (SUS304), galvanized steel (SGCC) |
| Status LEDs | System: White / Blue |
| Weight | 680 g (1.5 lb) |
| Ambient Operating Temperature | -30 to 40° C (-22 to 104° F) |
| Ambient Operating Humidity | 5 to 95% non-condensing |
U7 Pro Software & Compliance
| Feature | Specification |
| UniFi Network Application | Version 8.0.28 and later |
| Compliance | NDAA Compliant |
| Certifications | CE, FCC, IC, Anatel: 06370-24-08356 |
