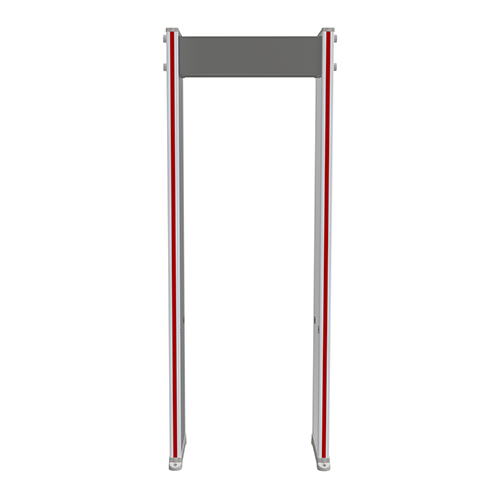

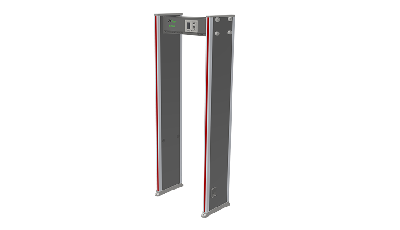

The ZK-D1065-18 Zone is a walk-through metal detector built for venues that need flexible, configurable security screening without committing to a single fixed setup. Offered in this 18-zone configuration (with 6 and 12-zone versions also available in the ZK-D1065 range), it delivers precise, adjustable detection suited to a wide variety of entry points.
Zone flexibility is a defining strength of the ZK-D1065-18 Zone. With 6, 12, or 18 adjustable detection zones available across the series, venues can choose the level of detection granularity that fits their specific security needs — from broader screening at lower-risk entry points to finer, more precise scanning at higher-security checkpoints.
Sensitivity control is genuinely thorough. With 500 sensitivity levels available, combined with both automatic and manual sensitivity setting, operators get real flexibility in tuning detection thresholds — automatic settings for consistent day-to-day operation, or manual adjustment when a venue’s specific screening needs call for it.
Preset configuration is where the ZK-D1065-18 Zone genuinely stands out. With 72 built-in scenario settings, operators can quickly switch between pre-configured detection profiles suited to different situations or venues, rather than manually reconfiguring settings each time requirements change — a real time-saver for venues screening different types of events or visitor groups.
Interference resistance is handled through 100 frequency channels, letting multiple detectors operate in close proximity — such as at adjacent entry lanes — without cross-interference affecting detection accuracy, a genuinely important consideration for busier venues running several units side by side.
Monitoring and interface design keep daily operation straightforward. A 3.5-inch LCD display gives operators a clear view of detection status, while people in-and-out counting tracks foot traffic through the checkpoint. People alarm counting adds a further layer of insight, logging how many individuals triggered an alarm over a given period — useful data for venues reviewing screening effectiveness over time.
Alert response combines both audio and visual cues through synchronous sound and LED alarms, ensuring detection events are immediately noticeable to both the operator and the person being screened.
Together, these features make the ZK-D1065-18 Zone a genuinely versatile, configurable walk-through metal detector — well suited to venues that need adjustable zone counts, detailed sensitivity control, and quick-switching preset scenarios for varied security screening needs.
ZK-D1065 (18 Zones) General & Physical Specifications
| Specification | Details |
| Detection Zones | 18 Zones |
| External Dimensions (H × W × L) | 2213 mm × 831 mm × 471 mm |
| Packaging Dimensions (H × W × L) | 2280 mm × 282 mm × 560 mm |
| Gross Weight (with Packing) | 40 kg |
| Alarm Volume | 85 dB |
ZK-D1065 Electrical & Operating Specifications
| Specification | Details |
| Power Supply | AC 100 V to 240 V |
| Input Voltage | DC 12 V |
| Working Current | 1.4 A |
| Running Power | 16 W |
| Working Frequency | 5.7 kHz to 9.6 kHz |
| Working Temperature | –20°C to +55°C |
| Working Humidity | < 95% RH (non-condensing) |
