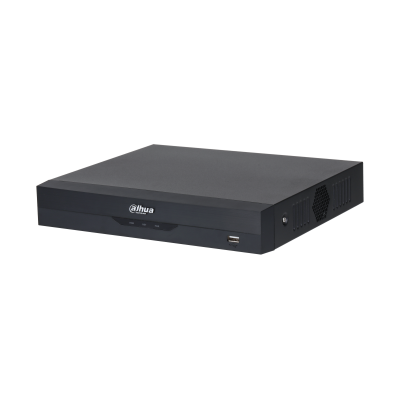

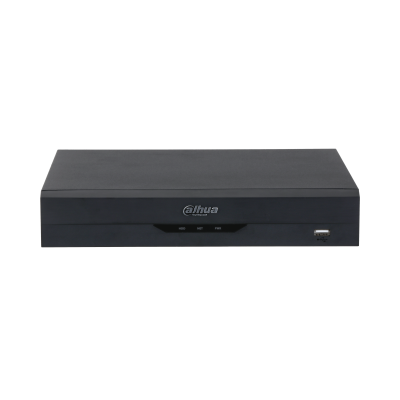

DHI-NVR4108HS-EI is a compact 8-channel network video recorder from Dahua’s WizSense series, built for surveillance projects that need serious AI analytics without stepping up to a rack-mounted system. Powered by an industrial-grade processor and embedded Linux, it fits into a space-saving 1U enclosure while delivering enterprise-style intelligence.
The DHI-NVR4108HS-EI supports IP camera resolutions up to 16MP across 8 channels, with adaptive decoding capability reaching up to 16 channels at 1080p@30fps. Network bandwidth totals 80 Mbps for incoming, recording, and outgoing streams, giving reliable performance even under demanding multi-camera loads.
Where the DHI-NVR4108HS-EI stands out is its onboard AI processing. The recorder itself handles 1-channel face detection and recognition, storing up to 10 face databases with 20,000 face images (2.5GB total capacity), along with 2-channel perimeter protection supporting 10 IVS rules per channel, and 4-channel SMD Plus for accurate motion filtering. When paired with compatible Dahua AI cameras, it extends to face detection, face recognition, perimeter protection, SMD, ANPR, people counting, stereo analysis, and heat mapping across all connected channels, each processing up to 8 targets per second.
Face attribute recognition covers gender, age group, glasses, expressions, face masks, and beards, and each stored face profile can include name, gender, birthday, address, and credential details, making the DHI-NVR4108HS-EI well suited for access control, retail analytics, and identity-aware security applications.
Video compression relies on Smart H.265+, H.265, Smart H.264+, H.264, and MJPEG, keeping storage requirements manageable even with AI-heavy recording. The unit includes one SATA HDD bay supporting drives up to 20TB, with the drive sold separately so users can choose capacity to match their retention needs.
Video output includes simultaneous or heterogeneous HDMI and VGA with maximum resolution up to 4K (3840×2160), giving clear detail for both live monitoring and reviewing AI-flagged events. Camera compatibility extends beyond ONVIF to include native support for Panasonic, Sony, Hanwha, Axis, Pelco, Arecont, and Canon devices.
Compact at 0.84kg, this recorder is a strong fit for schools, retail stores, hotels, and clinics that need facial recognition, people counting, and behavior analytics in a straightforward, cost-effective 8-channel package.
DHI-NVR4108HS-EI System
| Feature | Specification |
| Main Processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| Operating Interface | Web, Local GUI |
DHI-NVR4108HS-EI AI & Analytics
| Feature | Specification |
| AI by Recorder | Face detection; face recognition; perimeter protection; SMD |
| AI by Camera | Face detection; face recognition; perimeter protection; SMD; ANPR; people counting; stereo analysis; heat map |
| Perimeter Protection (Recorder AI) | 2 channels, 10 IVS rules for each channel |
| Perimeter Protection (Camera AI) | All channels (8 targets/s) |
| Face Detection Attributes | Gender; age group; glasses; expressions; face mask; beard |
| Face Detection (Recorder AI) | 1 channel (up to 12 face images/s each channel) |
| Face Detection (Camera AI) | All channels (8 targets/s) |
| Face Database Capacity | Up to 10 face databases with 20,000 images (total capacity 2.5 GB). Supports name, gender, birthday, address, credential type, credential No., countries & regions, and state |
| Face Recognition (Recorder AI) |
• 8-channel FD (by camera) + FR (by recorder), image stream: 12 face images/s
• 1-channel FD (by recorder) + FR (by recorder), video stream: 12 face images/s
|
| Face Recognition (Camera AI) | All channels (8 targets/s) |
| SMD Plus by Recorder | 4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
| SMD by Camera | All channels (16 targets/s) |
DHI-NVR4108HS-EI Audio and Video
| Feature | Specification |
| Access Channel | 8 channels |
| Network Bandwidth | 80 Mbps incoming, 80 Mbps recording, 80 Mbps outgoing |
| Resolution | 16 MP; 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 720p; 960p; D1; CIF |
| Decoding Capability (AI Disabled) | 2-ch @ 16 MP (30 fps); 2-ch @ 12 MP (30 fps); 4-ch @ 8 MP (30 fps); 4-ch @ 6 MP (30 fps); 6-ch @ 5 MP (30 fps); 8-ch @ 4 MP (30 fps) |
| Decoding Capability (AI Enabled) | 1-ch @ 16 MP (30 fps); 2-ch @ 12 MP (30 fps); 3-ch @ 8 MP (30 fps); 3-ch @ 6 MP (30 fps); 4-ch @ 5 MP (30 fps); 6-ch @ 4 MP (30 fps); 8-ch @ 1080p (30 fps) |
| Video Output |
1 HDMI, 1 VGA
• HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
• VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
|
| Multi-screen Display |
1st Screen: 1/4/8/9
2nd Screen: 1/4/8/9
|
| Third-party Camera Access | Panasonic, Sony, Hanwha, Axis, Pelco, Arecont, ONVIF, Canon |
DHI-NVR4108HS-EI Compression Standard
| Feature | Specification |
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
| Audio Compression | G.711a; G.711u; PCM; G726 |
DHI-NVR4108HS-EI Network
| Feature | Specification |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UPnP; SNMP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera, DVR, NVS, etc.); P2P; Self Registration |
| Mobile Phone Access | iOS; Android |
| Interoperability | ONVIF 23.12 (Profile T; Profile S; Profile G); CGI; SDK |
| Browser | Chrome; IE9 and later; Firefox |
DHI-NVR4108HS-EI Recording Playback
| Feature | Specification |
| Multi-channel Playback | Up to 8 channels |
| Record Mode | General; motion detection; intelligent; alarm |
| Backup Method | USB device and network |
| Playback Mode | Instant playback; general playback; event playback; tag playback; smart playback |
DHI-NVR4108HS-EI Alarm
| Feature | Specification |
| General Alarm | Motion detection; privacy masking; video loss; scene changing; PIR alarm; IPC external alarm |
| Anomaly Alarm | Error (no disk; disk error; low space; low quota space; abnormal disk health; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline; audio detection |
| Intelligent Alarm | Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map |
| Alarm Linkage | Record; snapshot; IPC external alarm output; audio; buzzer; log; preset; e-mail |

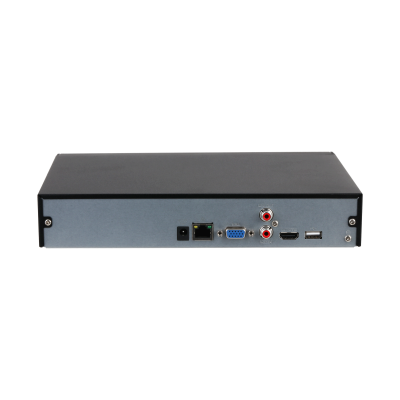

DHI-NVR4108HS-EI Port & Interfaces
| Feature | Specification |
| Audio Input | 1-channel RCA |
| Audio Output | 1-channel RCA |
| Disk Interface | 1 SATA port, up to 20 TB (maximum HDD capacity varies with environment temperature) |
| USB | 2 (1 front USB 2.0 port, 1 rear USB 2.0 port) |
| HDMI | 1 |
| VGA | 1 |
| Network Port | 1 (10/100 Mbps Ethernet port, RJ-45) |
DHI-NVR4108HS-EI General Specifications
| Feature | Specification |
| Power Supply | 12 VDC, 2 A |
| Power Consumption | <7.8 W (without HDD) |
| Net Weight | 0.84 kg (1.85 lb) |
| Gross Weight | 1.43 kg (3.15 lb) |
| Product Dimensions | 260.0 mm × 232.7 mm × 47.6 mm (10.24″ × 9.16″ × 1.87″) (W × D × H) |
| Packaging Dimensions | 333.0 mm × 89.0 mm × 315.0 mm (13.11″ × 3.50″ × 12.40″) (W × L × H) |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Operating Humidity | 10%–93% (RH), non-condensing |
| Certifications |
FCC: 47 CFR FCC Part15, SubpartB, Class A
CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014
CE-LVD: EN 62368-1:2014
|
