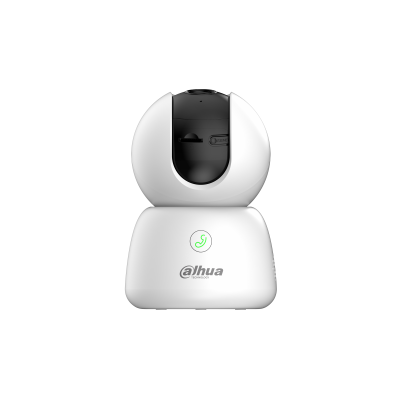

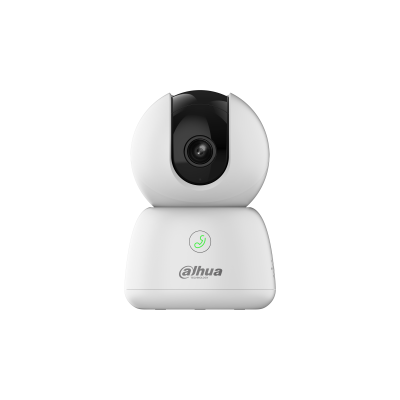

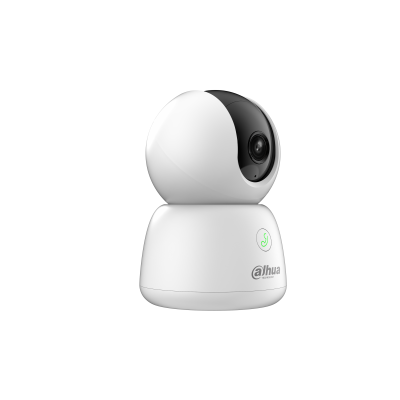

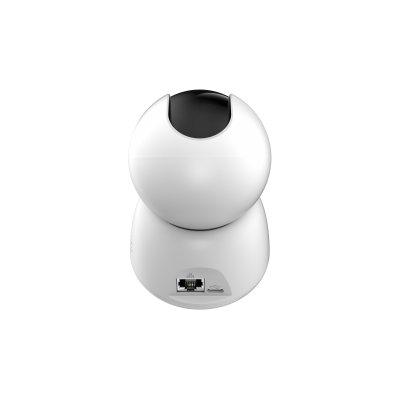

The Dahua H5B is a 5MP indoor fixed-focal Wi-Fi pan & tilt camera built for households and small businesses that want sharper detail alongside full-room coverage. With pan rotation up to 350° and tilt from -5° to 80°, a single camera can scan an entire space without leaving blind spots.
Image quality is a clear step up from standard indoor models. The Dahua H5B uses a 1/3″ CMOS sensor with a maximum resolution of 2880 x 1620, encoded through H.265 compression for efficient bandwidth use. A wide field of view, up to 115° diagonal with the 2.8mm lens option, makes it easy to capture an entire living room, office, or storefront from a single mounting point. Auto ICR day/night switching and DWDR help maintain image clarity across changing light conditions, while built-in IR illumination extends visibility up to 10 meters after dark.
Smart tracking sets the Dahua H5B apart. Preset patrol lets the camera automatically cycle through key viewing points, while auto tracking keeps the lens locked onto moving subjects as they cross the frame. Combined with AI-based human and pet detection, the camera focuses attention on activity that actually matters, cutting down on irrelevant alerts — a practical fit for small retail stores as well as homes.
Communication features add real convenience. A one-click proactive call lets users start a conversation instantly through the built-in mic and speaker, useful for checking in on a space or greeting visitors remotely. Detection events and alerts sync directly to the mobile client, keeping users informed no matter where they are.
Setup and remote access run through the DMSS app, compatible with both iOS and Android, giving users live views and playback from anywhere. The camera connects over 2.4GHz Wi-Fi (802.11b/g/n/ax) and stores footage locally via a microSD card up to 256GB, with no mandatory cloud subscription required. Power consumption stays efficient, ranging from 1.9W at idle to a maximum of 3.8W during active live view, IR, and pan-tilt rotation.
Compact and lightweight at just 206.5g, with dimensions of φ84mm x 123.8mm, the Dahua H5B fits easily into any indoor space. It operates reliably between -10°C and +45°C, backed by CE certification for dependable, higher-resolution monitoring across homes and small commercial spaces alike.
H5B Camera
| Specification | Details |
| Image Sensor | 1/3″ CMOS |
| Max. Resolution | 2880 (H) × 1620 (V) |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Illumination Distance | Up to 10 m (32.81 ft) (IR) |
| Illuminator On/Off Control | Auto |
| Illuminator Number | 1 (IR LED) |
| Angle Adjustment | Tilt: -5° to 80°; Pan: 0° to 350° |
H5B Lens
| Specification | Details |
| Max. Aperture | F2.0 |
| Field of View |
2.8mm: H: 99°; V: 55°; D: 115°
3.6mm: H: 74°; V: 41°; D: 88°
|
H5B Intelligence
| Specification | Details |
| Human Detection | Yes |
H5B Video
| Specification | Details |
| Video Compression | H.265 |
| Video Frame Rate |
Main stream: 2880 × 1620@(1-25/30 fps)
Sub stream: 640 × 360@(1-25/30 fps)
|
| Resolution | 5M (2880 × 1620); nHD (640 × 360) |
| Video Bit Rate | H.265: 40 kbps–4096 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| WDR | DWDR |
| Motion Detection | Yes |
| Image Rotation | 0°/180° |
H5B Audio
| Specification | Details |
| Built-in MIC | Yes |
| Built-in Speaker | Yes |
| Audio Compression | G.711a |
H5B Network
| Specification | Details |
| Network Port | RJ-45 (10/100 Base-T) |
| Wi-Fi | IEEE 802.11b/g/n/ax 2.412-2.472 GHz, 2.4 G, ≤20dBm@2400-2483.5MHz |
| Storage | Micro SD card (up to 256 GB) |
| Management Software | DMSS |
| Mobile Client | iOS; Android |
H5B Certification
| Specification | Details |
| Certifications | CE |
H5B Power
| Specification | Details |
| Power Supply | 5 VDC, 1 A |
| Power Consumption |
Basic: 1.9 W
Max.: 3.8 W (live + IR + PT rotation)
|
H5B Environment
| Specification | Details |
| Operating Temperature | –10 °C to +45 °C (+14 °F to + 113 °F) |
| Operating Humidity | ≤95% |
H5B Structure
| Specification | Details |
| Casing Material | Plastic |
| Product Dimensions | φ84 mm × 123.8 mm (φ3.31″ × 4.87″) |
| Net Weight | 206.5 g (0.46 lb) |
