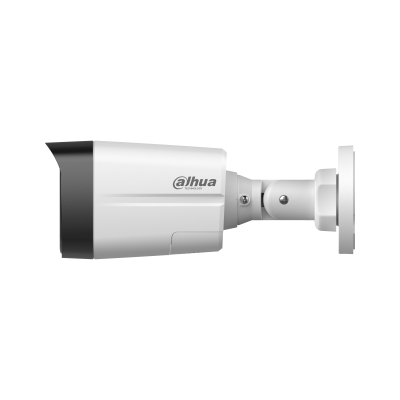

The Dahua IPC-HFW1239TL1-PV is a 2MP entry-level fixed-focal bullet network camera built for straightforward, dependable outdoor and indoor monitoring with active deterrence built in. Using a 1/2.8″ CMOS sensor, it delivers clear, low-noise footage suited for entrances, driveways, and general-purpose surveillance.
Night vision is a strength of the Dahua IPC-HFW1239TL1-PV. With built-in IR LEDs and warm-light illuminators, the camera reaches a maximum distance of 50 meters in both modes, giving strong nighttime coverage that goes well beyond typical entry-level cameras. Smart Dual Light technology allows the camera to combine IR and color illumination intelligently, adapting to the scene as needed.
Image quality holds up well across varying conditions. The camera outputs a maximum resolution of 1920 x 1080 at up to 30fps, encoded through H.265 with Smart H.264+/H.265+ for efficient, flexible coding across different bandwidth and storage environments. DWDR, 3D noise reduction, HLC, and BLC work together to maintain clarity in backlit or high-contrast scenes, while digital watermarking supports footage authenticity.
Smart detection adds real security value. The Dahua IPC-HFW1239TL1-PV supports human detection with accurate classification, helping reduce false alerts from irrelevant motion. It also integrates with Smart NVR systems to enable refined intelligent search, extracting and merging event videos for faster review. Abnormality detection covers a broad range of events, including motion detection, video tampering, audio detection, network disconnection, IP conflict, and illegal access attempts.
Active deterrence is a defining feature here. When triggered, the camera activates a sound and light alarm to actively discourage intruders, going beyond passive recording. One-tap arming and disarming makes it simple for users to manage the camera’s alert status without digging through menus.
Two-way communication runs through a built-in mic and speaker, letting users respond directly to visitors or verbally warn off unwanted activity. Power flexibility is built in as well, supporting both 12VDC and PoE (802.3af), simplifying installation for a range of setups.
Built for demanding environments, the Dahua IPC-HFW1239TL1-PV carries an IP67 rating and operates reliably across an exceptionally wide range of -40°C to +60°C. Its metal-and-plastic casing adds durability for long-term outdoor use. At 0.35kg and measuring 197.9mm x 80.2mm x 76.2mm, it delivers a compact, dependable security solution backed by CE-LVD and CE-EMC certification.
IPC-HFW1239TL1-PV Camera
| Specification | Details |
| Image Sensor | 1/2.8″ CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| ROM | 128 MB |
| RAM | 128 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Minimum Illumination |
0.005 lux@F1.6 (Color, 30 IRE)
0.0005 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)
|
| S/N Ratio | >56 dB |
| Illumination Distance |
Up to 50 m (164.04 ft) (IR)
Up to 50 m (164.04 ft) (Warm light)
|
| Illuminator On/Off Control | Auto; Manual |
| Illuminator Number | 2 (IR LED); 2 (Warm light) |
| Angle Adjustment | Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360° |
IPC-HFW1239TL1-PV Lens
IPC-HFW1239TL1-PV DORI Distance
| Lens | Detect | Observe | Recognize | Identify |
| 2.8 mm | 44.1 m (144.69 ft) | 17.7 m (58.07 ft) | 8.8 m (28.87 ft) | 4.4 m (14.4 ft) |
| 3.6 mm | 53.8 m (176.51 ft) | 21.5 m (70.54 ft) | 10.8 m (35.43 ft) | 5.4 m (17.72 ft) |
| 6 mm | 85.5 m (280.51 ft) | 34.2 m (112.2 ft) | 17.1 m (56.10 ft) | 8.6 m (28.22 ft) |
IPC-HFW1239TL1-PV Intelligence
| Specification | Details |
| Human Detection | Support the classification and accurate detection of human |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
IPC-HFW1239TL1-PV Video
| Specification | Details |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (sub stream only) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| Video Frame Rate |
Main stream: 1920 × 1080 @ (1–25/30 fps)
Sub stream: 704 × 576 @ (1–25 fps) / 704 × 480 @ (1–30 fps)
|
| Streaming Capability | 2 streams |
| Resolution | 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR / VBR |
| Video Bit Rate |
H.264: 32 kbps–4096 kbps
H.265: 12 kbps–4096 kbps
|
| Day/Night | Auto (ICR) / Color / B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | DWDR |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Manual; Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF / ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Smart Dual Light | Yes |
| Image Rotation | 0° / 90° / 180° / 270° (Supports 90°/270° with 1080p resolution and lower) |
| Mirror | Yes |
| Privacy Masking | Yes (4 areas) |
IPC-HFW1239TL1-PV Audio
| Specification | Details |
| Built-in MIC | Yes, built-in microphone |
| Built-in Speaker | Yes, built-in speaker |
| Audio Compression | G.711a; G.711Mu; PCM; G.726 |
IPC-HFW1239TL1-PV Alarm
| Specification | Details |
| Alarm Event | Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; SMD (human); security exception |
IPC-HFW1239TL1-PV Network
| Specification | Details |
| Network Port | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P; Auto Registration |
| Interoperability | ONVIF (Profile S & Profile T); CGI |
| User/Host | 6 (Total bandwidth: 24 M) |
| Storage | FTP |
| Browser | IE; Chrome; Firefox |
| Management Software | Smart PSS Lite; DSS; DMSS |
| Mobile Client | iOS; Android |
| Security | Digest; WSSE; Account lockout; Security logs; Generation and importing of X.509 certification; HTTPS; Trusted boot; Trusted execution; Trusted upgrade |
IPC-HFW1239TL1-PV Certification
IPC-HFW1239TL1-PV Power
IPC-HFW1239TL1-PV Environment
| Protection | IP67 |
