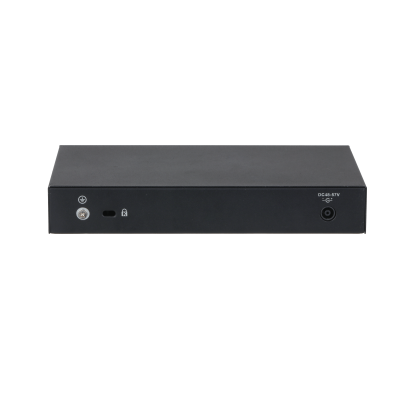

The Dahua PFS3010-8ET-96 is a 10-port unmanaged desktop switch built for installations that demand higher PoE power output alongside strong network throughput. With eight PoE-enabled ports and two Gigabit uplink ports, it is designed to handle a wide mix of security cameras, access points, and other PoE-powered devices in a single deployment.
As a true plug-and-play device, the Dahua PFS3010-8ET-96 requires no configuration or specialized networking knowledge. It is an unmanaged switch, meaning traffic distribution and device recognition happen automatically once everything is connected, making it fast and simple to install.
One of the standout capabilities of the Dahua PFS3010-8ET-96 is its high total PoE budget of 96W. The switch supports IEEE802.3af, IEEE802.3at, Hi-PoE, and IEEE802.3bt standards, with its dedicated red port capable of delivering up to 90W to a single device — ideal for high-power equipment such as PTZ cameras or powered access points that standard PoE ports cannot support.
Intelligent PoE management is built directly into the Dahua PFS3010-8ET-96, offering real-time power monitoring and control across connected ports. Combined with a PoE watchdog feature, the switch can automatically detect and recover unresponsive devices, reducing the need for manual maintenance and improving overall network reliability.
Long Distance PoE transmission extends the usable range on ports 1 through 8 up to 250 meters, well beyond the standard 100-meter Ethernet limit. This makes the switch especially useful in larger facilities or outdoor installations where devices are positioned far from the network closet.
Built with a durable enclosure and rated for operation across a wide temperature range of -10°C to +55°C, this switch is engineered to handle demanding environments reliably. Its compact desktop form factor also supports flexible placement in offices, server rooms, or surveillance control rooms.
Combining a higher PoE power budget, intelligent power management, extended transmission range, and solid Gigabit uplinks, the Dahua PFS3010-8ET-96 is a capable choice for networks that need more power and performance than standard entry-level PoE switches can offer.
Model PFS3010-8ET-96 – Hardware
| Parameter | Detail / Value |
| Data Transmission Port |
Port 1–8: 8 × RJ-45 10/100 Mbps (PoE)
Port 9-10: 2 × RJ-45 10/100/1000 Mbps (Uplink)
|
| Power Supply | 48 V – 57 V DC |
| Operaing Temperature | –10 °C to +55 °C (+14°F to +131°F) |
| Operating Humidity | 5% – 95% (RH) |
| Storage Temperature | –20 °C to +70 °C (–4°F to +158°F) |
| Storage Humidity | 5% – 95% (RH) |
| Power Consumption |
Idling: 3 W
Full load: 96 W
|
Model PFS3010-8ET-96 – Performance
| Parameter | Detail / Value |
| Switching Capacity | 5.60 Gbps |
| Packet Forwarding Rate | 4.17 Mpps |
| Packet Buffer Memory | 4 Mbit |
| MAC Table Size | 8K |
| Communication Standard | IEEE802.3/IEEE802.3u/IEEE 802.3ab/IEEE802.3x |
Model PFS3010-8ET-96 – PoE
| Parameter | Detail / Value |
| PoE Standard | IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt |
| PoE Power | Port 1 ≤ 90 W, Port 2-8 ≤30 W, total ≤ 96 W |
| Power Consumption Management | Yes |
| PoE Pin Assignment | 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-) |
| Long Distance PoE | 250 m long distance PoE transmission |
| PoE Watchdog | Yes |
Model PFS3010-8ET-96 – General
| Parameter | Detail / Value |
| Statics Protection |
Air discharge: 8 kV
Contact discharge: 6 kV
|
| Thunder-proof |
Common mode: 4 kV
Differential mode: 2 kV
|
| Net Weight | 0.50 kg (1.10 lb) |
| Gross Weight | 1.32 kg (2.91 lb) |
| Product Dimensions | 190 mm × 100 mm × 30 mm (7.48″ × 3.94″ × 1.18″) |
Model PFS3010-8ET-96 – Transmission Performance
| Standard / Mode | Cable (m) | Load Capacity (W) | Bandwidth (Mbps) |
| IEEE802.3bt 90 W | 100 | 71.3 | 100 |
| 150 | 62 | 10 | |
| 200 | 51 | 10 | |
| 250 | 40 | 10 | |
| Hi-PoE 60 W | 100 | 53 | 100 |
| 150 | 50 | 10 | |
| 200 | 47 | 10 | |
| 250 | 37 | 10 | |
| IEEE802.3at 30 W | 100 | 25.5 | 100 |
| 150 | 25.5 | 10 | |
| 200 | 25.5 | 10 | |
| 250 | 25.5 | 10 |
