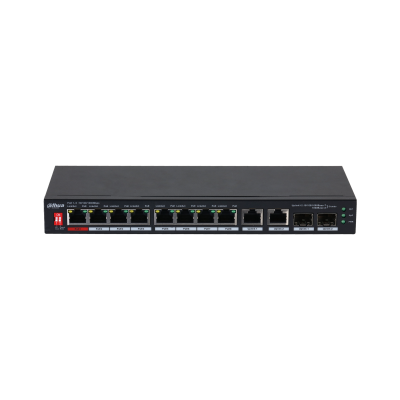

The Dahua PFS3210-8GT2GF-96 is a 10-port unmanaged desktop Gigabit switch designed for installations that need high-power PoE delivery combined with fiber uplink flexibility. With eight Gigabit PoE ports and two SFP uplink ports, it is built to handle demanding surveillance and high-bandwidth networking applications.
As an all-gigabit switch, the Dahua PFS3210-8GT2GF-96 provides full 10/100/1000 Mbps speed across every PoE port, ensuring smooth performance for high-resolution IP cameras and data-heavy network traffic. This makes it a strong fit for larger surveillance deployments where bandwidth demands exceed basic Fast Ethernet switching.
One of the standout features of the Dahua PFS3210-8GT2GF-96 is its high total PoE budget of 90W. The switch includes a dedicated red port supporting IEEE802.3bt and Hi-PoE standards, capable of powering high-demand devices such as PTZ cameras or specialized access points that require more power than standard PoE can deliver.
The switch also offers two 1000M SFP uplink ports, giving installers the option to extend connections over fiber for longer-distance or higher-reliability links back to the core network. This is particularly valuable in larger facilities where copper cabling alone may not be practical.
Two selectable transmission modes, Extend Mode On and Extend Mode Off, allow flexibility depending on the installation environment. This, combined with PoE watchdog functionality, helps maintain consistent uptime by automatically detecting and recovering unresponsive devices without manual intervention.
Built for durability, the Dahua PFS3210-8GT2GF-96 operates reliably across a wide temperature range of -10°C to +55°C, making it suitable for a variety of installation conditions. Its unmanaged, plug-and-play design keeps setup straightforward despite its advanced feature set.
Combining Gigabit performance, a high 90W PoE budget, fiber uplink support, and intelligent power management, the Dahua PFS3210-8GT2GF-96 is a capable solution for networks that demand more power, speed, and flexibility than standard entry-level PoE switches.
PFS3210-8GT2GF-96 – Hardware
| Parameter | Detail / Value |
| Included Power Adapter | Yes |
| PoE | Yes |
| Ethernet Port | 8 |
| Ethernet Port Speed | 10/100/1000 Mbps |
| Ethernet Port Uplink Speed | 10/100/1000 Mbps |
| Optical Port Uplink Speed | 1 Gbps |
| Description of Function Slots |
Port 1-8: 8 × 10/100/1000 Base-T (PoE)
Uplink 1-2: 2 × 10/100/1000 Base-T (Combo)
Uplink 1-2: 2 × 1000 Base-X (Combo)
|
| Power Supply | 53 VDC, 1.81 A |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity | 10%–90% (RH) |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Storage Humidity | 5%–95% (RH) |
| Power Consumption |
Idling: 3 W
Full load: 96 W
|
PFS3210-8GT2GF-96 – Performance
| Parameter | Detail / Value |
| Layer | Unmanaged |
| Management Type | No |
| Smart Managed Switch | No |
| MTBF | 82.57 year |
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.88 Mpps |
| Packet Buffer Size | 1.5 Mbit |
| Jumbo Frame | 9K Byte |
| MAC Table Size | 4K |
| Communication Standard | IEEE802.3; IEEE802.3u; IEEE 802.3ab; IEEE802.3x |
PFS3210-8GT2GF-96 – PoE
| Parameter | Detail / Value |
| PoE Protocol | IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt |
| PoE Power | Port 2-8 ≤30 W, port 1 ≤90 W, total ≤96 W |
| PoE Power Consumption Management | Yes |
| PoE Pin Assignment | 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-) |
| Long Distance PoE Transmission | Yes |
PFS3210-8GT2GF-96 – General
| Parameter | Detail / Value |
| Statics Protection |
Air discharge: 8 kV
Contact discharge: 6 kV
|
| Lighting Protection |
Common mode: 4 kV
Differential mode: 2 kV
|
| Net Weight | 0.65 kg (1.43 lb) |
| Gross Weight | 1.4 kg (3.09 lb) |
| Product Dimensions | 240 mm × 105 mm × 28 mm (9.45″ × 4.13″ × 1.10″) |
| Packaging Dimensions | 279 mm × 239 mm × 89 mm (10.98″ × 9.41″ × 3.50″) |
| Casing Material | Metal |
| Installation | Desktop mount |
| Certifications | CE; FCC |
PFS3210-8GT2GF-96 – Transmission Performance
| Standard / Mode | Cable (m) | Load Capacity (W) | Bandwidth (Mbps) |
| IEEE802.3bt 90 W | 100 | 71.3 | 1000 |
| 150 | 62 | 10 | |
| 200 | 51 | 10 | |
| 250 | 40 | 10 | |
| Hi-PoE 60 W | 100 | 53 | 1000 |
| 150 | 50 | 10 | |
| 200 | 47 | 10 | |
| 250 | 37 | 10 | |
| IEEE802.3at 30 W | 100 | 25.5 | 1000 |
| 150 | 25.5 | 10 | |
| 200 | 25.5 | 10 | |
| 250 | 25.5 | 10 |
