The U6 Lite is a compact, ceiling-mounted WiFi 6 access point from Ubiquiti’s UniFi lineup, built for small offices, homes, and residential deployments that need reliable wireless coverage without enterprise-scale complexity. Its slim, low-profile design makes it an unobtrusive addition to any ceiling or wall installation.
At its core, the U6 Lite runs on 4 spatial streams with 2×2 MU-MIMO on the 5 GHz band and 2×2 SU-MIMO on 2.4 GHz. Maximum data rate reaches 1.2 Gbps on 5 GHz (BW80) and 300 Mbps on 2.4 GHz (BW40), giving it solid throughput for everyday browsing, streaming, and video calls across a household or small business.
Coverage is well suited to smaller spaces, with the U6 Lite supporting up to 300+ concurrent client connections across a coverage area of 115 m² (1,250 ft²). Its 802.11ax chipset maintains backward compatibility with 802.11ac and 802.11n devices, ensuring older hardware connects without issues.
Despite its compact size, the U6 Lite carries the same enterprise-grade feature set found across the UniFi WiFi 6 lineup. It supports wireless meshing, band steering, 802.11r fast roaming, 802.11k radio resource management, and Passpoint (Hotspot 2.0), along with a full captive portal suite covering custom branding, voucher authentication, payment-based access, and RADIUS-assigned VLANs for network segmentation.
Connectivity runs through a single Gigabit Ethernet uplink port with standard PoE power delivery, drawing a maximum of just 12W. The device weighs only 300g on its own, or 315g with the included mount, and its enclosure combines polycarbonate and aluminum with a polycarbonate and SGCC steel mount for everyday durability.
Built to operate from –30°C to 60°C with 5–95% non-condensing humidity tolerance, the U6 Lite handles a wide range of indoor environments. It’s managed through the UniFi Network application (version 6.0.45 or later) via Ethernet or Bluetooth, and is NDAA compliant with CE, FCC, and IC certifications.
For homes and small offices that want dependable WiFi 6 performance in a compact, budget-friendly package, the U6 Lite is an excellent entry point into the UniFi ecosystem.
U6 Lite Overview
| Feature | Specification |
| Wi-Fi Standard | Wi-Fi 6 (802.11ax) |
| Spatial Streams | 4 |
| Coverage Area | 115 m² (1,250 ft²) |
| Max. Client Count | 300+ |
| Uplink Interface | (1) GbE RJ45 Port |
| Power Method | PoE (44–57V DC) |
| Mounting | Ceiling, Wall (Mounts included) |

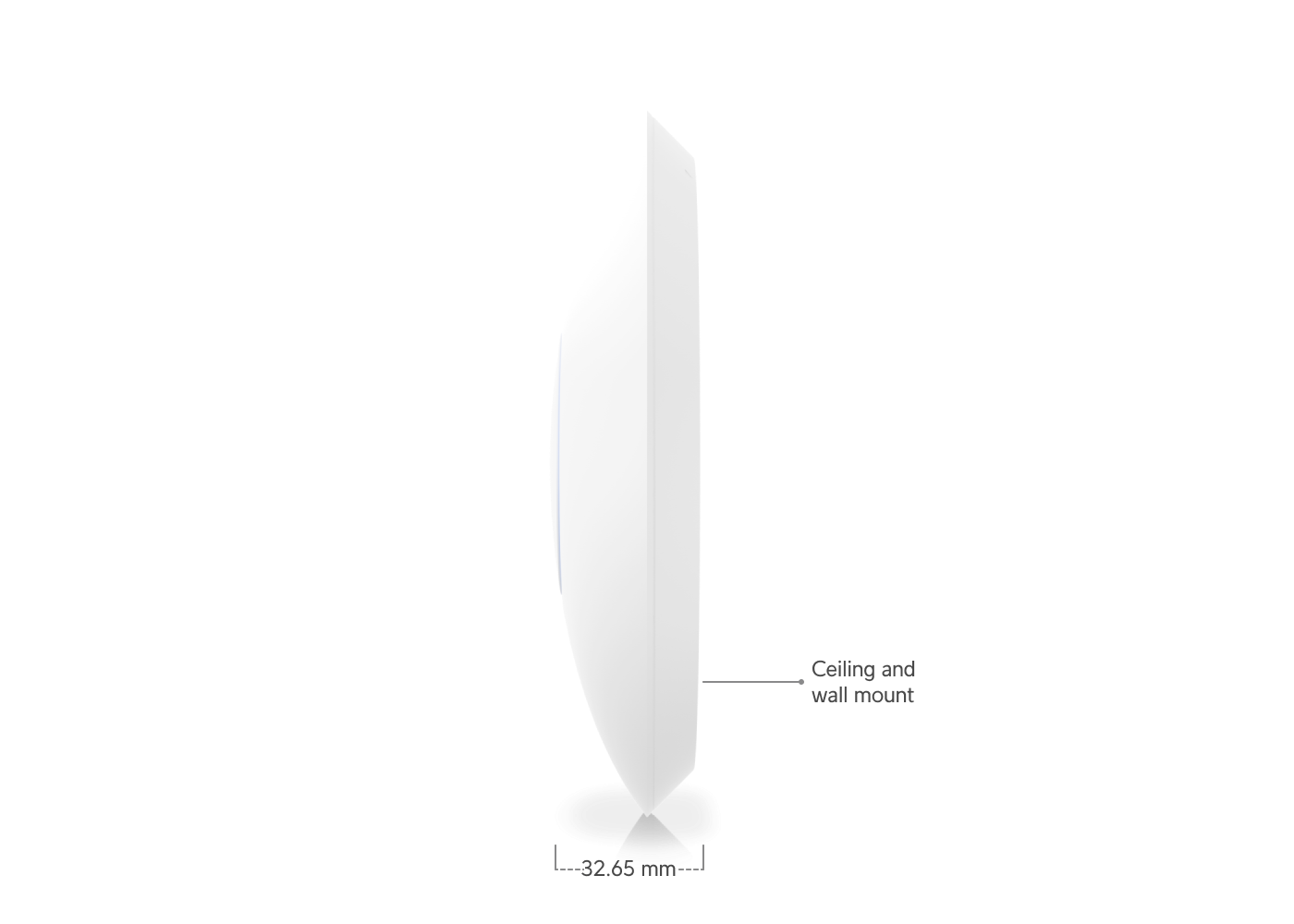

| Dimensions | ⌀160 mm × 33 mm (⌀6.3″ × 1.3″) |
U6 Lite Wireless & Performance
| Feature | Specification |
| MIMO |
• 5 GHz: 2 × 2 (DL/UL MU-MIMO)
• 2.4 GHz: 2 × 2 (SU-MIMO)
|
| Max. Data Rates |
• 5 GHz: 1.2 Gbps (BW80)
• 2.4 GHz: 300 Mbps (BW40)
|
| Antenna Gain |
• 5 GHz: 3.0 dBi
• 2.4 GHz: 2.8 dBi
|
| Max. TX Power |
• 5 GHz: 23 dBm
• 2.4 GHz: 23 dBm
|
| BSSID Capacity | 8 per radio |
| Channel Bandwidths |
• HT: 20/40 MHz
• VHT: 20/40/80 MHz
• HE: 20/40/80 MHz
|
| Supported Data Rates |
• 802.11ax (Wi-Fi 6): 7.3 Mbps to 1.2 Gbps (MCS0–MCS11 NSS1/2, HE 20/40/80)
• 802.11ac (Wi-Fi 5): 6.5 Mbps to 866.7 Mbps (MCS0–MCS9 NSS1/2, VHT 20/40/80)
• 802.11n: 6.5 Mbps to 300 Mbps (MCS0–MCS15, HT 20/40)
|
| Operating Frequency (US/CA) |
• 2.4 GHz: 2400–2472 MHz
• 5 GHz: U-NII-1 (5150–5250 MHz), U-NII-2A (5250–5350 MHz), U-NII-2C (5470–5725 MHz), U-NII-3 (5725–5850 MHz)
|
| Operating Frequency (Worldwide) |
• 2.4 GHz: 2400–2483.5 MHz
• 5 GHz: 5150–5850 MHz
|
U6 Lite Advanced Features
| Category | Supported Features |
| Radio & Roaming | Wireless Meshing, Band Steering, 802.11k (RRM), 802.11r (Fast Roaming), 802.11v (BSS Transition Management), Advanced Radio Management |
| Access & Security | Passpoint (Hotspot 2.0), Private Pre-Shared Key (PPSK), Client Device Isolation, Guest Network Isolation, WiFi Speed Limiting, WiFi Schedules |
| RADIUS & Enterprise | RADIUS over TLS (RadSec), Dynamic RADIUS-assigned VLAN |
| Captive Hotspot Portal | Custom Branding Landing Page, Voucher Authentication, Payment-Based Authentication, External Portal Server Support, Password Authentication |
U6 Lite Hardware & Mechanical
| Feature | Specification |
| Max. Power Consumption | 12 W |
| Input Voltage Range | 44–57V DC |
| Management Interfaces | Ethernet, Bluetooth |
| Enclosure Material | Polycarbonate, aluminum |
| Mount Material | Polycarbonate, SGCC steel |
| Status LEDs | System: White / Blue |
| Weight |
• Device: 300 g (10.6 oz)
• With Mount: 315 g (11.1 oz)
|
| Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Operating Humidity | 5 to 95% non-condensing |
U6 Lite Software & Compliance
| Feature | Specification |
| Application Requirement | UniFi Network: Version 6.0.45 or later |
| Compliance | NDAA Compliant |
| Certifications | CE, FCC, IC, Anatel: 08784-21-08356 |
