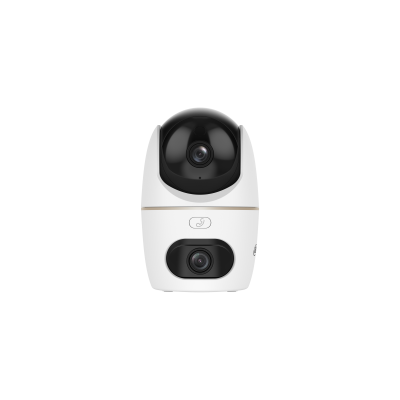

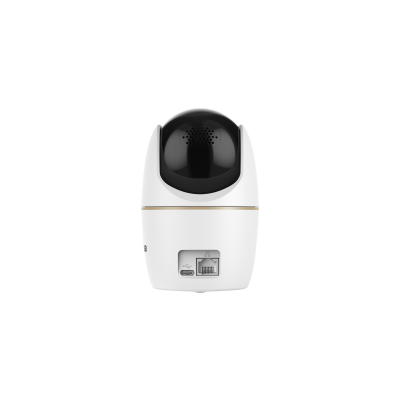

The Dahua H5D-5F is a 5+5MP indoor Wi-Fi dual-lens pan and tilt camera that combines a fixed lens with a motorized PT lens for simultaneous multi-angle monitoring. Part of the Hero Dual Series, it allows one camera to cover two different areas at once, reducing the need for multiple units in compact spaces such as stores or restaurants.
Both lenses on the Dahua H5D-5F deliver sharp 5MP image quality, capturing detailed footage from two perspectives at the same time. This higher resolution compared to standard dual-lens models makes it well suited for spaces where finer visual detail matters, whether monitoring an entrance or a wider room area.
A standout feature of the Dahua H5D-5F is its Tap and View function, letting users tap anywhere on the fixed lens view in the app to instantly rotate the PT lens to that exact spot. Coordinated fixed lens and PT lens monitoring ensures complete vigilance across the entire space being observed.
Smart detection is built into both lenses, with AI human and pet detection working to reduce false alarms significantly. The PT lens adds automatic target tracking, following moving subjects to keep them within view, while sound and light alarms trigger instantly to deter potential intruders.
Connectivity is handled through Wi-Fi 6, delivering high-speed performance with strong resistance to interference. Bluetooth pairing simplifies the initial setup process, allowing the camera to connect quickly without extra configuration steps.
For communication and privacy, the Dahua H5D-5F includes one-click proactive calling for two-way conversations from anywhere, giving users the ability to check in remotely. Sound and light alerts add another layer of active deterrence when unusual activity is detected.
With microSD card support for local storage and integration with the DMSS app for remote monitoring, device management, and sharing, the Dahua H5D-5F offers a higher-resolution, flexible surveillance solution for small business and home environments needing detailed multi-angle coverage from a single camera.
H5D-5F – Camera Specifications (2.8 mm + 6 mm Variant)
Fixed Lens
| Parameter | Detail / Value |
| Image Sensor | 1/3″ CMOS |
| Max. Resolution | 2880 (H) × 1620 (V) |
| Illumination Distance | Up to 30 m (98.43 ft) (IR) |
| Illuminator Number | 2 (IR LED) |
| Angle Adjustment | 0° to 15° |
| Lens Type | Fixed-focal |
| Focal Length | 2.8 mm |
| Max. Aperture | F2.0 |
| Field of View | H: 88°; V: 48°; D: 104° |
PT Lens
| Parameter | Detail / Value |
| Image Sensor | 1/3″ CMOS |
| Max. Resolution | 2880 (H) × 1620 (V) |
| Illumination Distance |
Up to 50 m (164.04 ft) (IR)
Up to 40 m (131.23 ft) (Warm light)
|
| Illuminator Number | 2 (IR LED); 1 (Warm light) |
| Angle Adjustment | Pan: 0° to 349°; Tilt: –5° to 90° |
| Lens Type | Fixed-focal |
| Focal Length | 6 mm |
| Max. Aperture | F1.6 |
| Field of View | H: 49°; V: 26°; D: 57° |
H5D-5F – Camera Specifications (3.6 mm + 3.6 mm Variant)
Fixed Lens
| Parameter | Detail / Value |
| Image Sensor | 1/3″ CMOS |
| Max. Resolution | 2880 (H) × 1620 (V) |
| Illumination Distance | Up to 30 m (98.43 ft) (IR) |
| Illuminator Number | 2 (IR LED) |
| Angle Adjustment | 0° to 15° |
| Lens Type | Fixed-focal |
| Focal Length | 3.6 mm |
| Max. Aperture | F2.0 |
| Field of View | H: 86°; V: 46°; D: 104° |
PT Lens
| Parameter | Detail / Value |
| Image Sensor | 1/3″ CMOS |
| Max. Resolution | 2880 (H) × 1620 (V) |
| Illumination Distance |
Up to 30 m (98.43 ft) (IR)
Up to 30 m (98.43 ft) (Warm light)
|
| Illuminator Number | 2 (IR LED); 1 (Warm light) |
| Angle Adjustment | Pan: 0° to 349°; Tilt: –5° to 90° |
| Lens Type | Fixed-focal |
| Focal Length | 3.6 mm |
| Max. Aperture | F2.0 |
| Field of View | H: 86°; V: 46°; D: 104° |
H5D-5F – Intelligence & Functions
| Parameter | Detail / Value |
| Human Detection | Yes |
| Pet Detection | Yes |
| Abnormal Sound Alarm | Yes |
| Privacy Mode | Yes |
H5D-5F – Audio and Video
| Parameter | Detail / Value |
| Video Compression | H.265 |
| Video Frame Rate |
Main stream: 2880 × 1620@15 fps
Sub stream: 640 × 360@15 fps
(Max. frame rates per stream; subject to total encoding capacity for multiple streams)
|
| Video Bit Rate | H.265: 768 kbps–4096 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| WDR | DWDR |
| Motion Detection | Yes |
| Image Rotation | 0°/180° |
| Built-in MIC | Yes, built-in Mic |
| Built-in Speaker | Yes, built-in speaker |
| Audio Compression | G.711a |
H5D-5F – Network & Storage
| Parameter | Detail / Value |
| Network Port | RJ-45 (10/100 Base-T) |
| Wi-Fi | IEEE 802.11a/b/g/n/ac/ax 2.4–2.4835 GHz, 2.4 G, EIRP≤20 dBm & 5.15–5.25 GHz, 5 G, EIRP≤23 dBm@5150–5250 MHz |
| Wi-Fi Pairing | Bluetooth pairing |
| Storage | Micro SD card (support max. 256 GB) |
| Management Software | DMSS |
| Mobile Client | iOS; Android |
H5D-5F – General
| Parameter | Detail / Value |
| Certifications | CE |
| Power Supply | 5 VDC |
| Power Consumption |
Basic: 2.5 W
Max.: 5.4 W (pulling stream + IR + PT rotation)
|
| Operating Temperature | –10 °C to +45 °C (–4 °F to +113 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Casing Material | Plastic |
| Product Dimensions | Φ80.9 mm × 125.7 mm (3.19″ × Φ4.95″) |
| Net Weight | 233 g (0.51 lb) |
