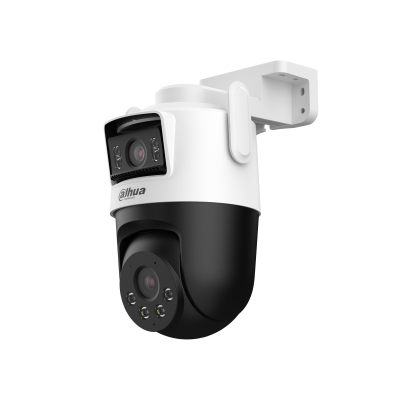

The Dahua P3D-3F-PV-P is a 3+3MP outdoor WizColor Wi-Fi dual-lens pan and tilt camera from the Picoo Dual Series, combining a fixed lens with a motorized PT lens for versatile, simultaneous multi-angle monitoring. This dual-lens design allows one camera to cover two different areas outdoors, reducing the need for multiple units.
A defining feature of the Dahua P3D-3F-PV-P is its advanced WizColor technology, which delivers crisp, vibrant colour images in low-light conditions comparable to daytime footage. This makes it particularly effective for nighttime surveillance where standard cameras typically struggle to capture usable detail.
Unlike Wi-Fi only models, the Dahua P3D-3F-PV-P supports both Wi-Fi and PoE (802.3af) connectivity, giving installers the flexibility to choose a wireless setup or a stable, powered Ethernet connection depending on the installation environment and cabling available.
Smart detection is built into both lenses, with AI human and vehicle detection working to minimize false alarms triggered by everyday outdoor movement. With the assistance of the PT lens, the camera automatically tracks moving targets, keeping activity in view as it happens.
Field of view coverage is thoughtfully split between the two lenses, with the fixed lens offering a wide 89° view and the PT lens providing a more focused 52° angle. This combination balances broad area coverage with the ability to zero in on specific activity when needed.
Built with a durable casing rated for outdoor use, the Dahua P3D-3F-PV-P operates reliably across a wide temperature range of -30°C to +50°C, making it well suited for demanding climates and continuous outdoor exposure.
With built-in microphone and speaker for two-way communication, microSD card support for local storage, and flexible Wi-Fi or PoE power options, the Dahua P3D-3F-PV-P offers a dependable, feature-rich solution for small business and residential outdoor surveillance.
P3D-3F-PV-P – Camera & Lenses
Fixed Lens (Channel 2)
| Parameter | Detail / Value |
| Image Sensor | 1/2.9″ CMOS |
| Max. Resolution | 2304 (H) × 1296 (V) |
| Focal Length | 2.8 mm |
| Max. Aperture | F1.0 |
| Field of View | H: 89°; V: 48°; D: 105° |
PT Lens (Channel 1)
| Parameter | Detail / Value |
| Image Sensor | 1/2.9″ CMOS |
| Max. Resolution | 2304 (H) × 1296 (V) |
| Focal Length | 6 mm |
| Max. Aperture | F1.0 |
| Field of View | H: 52°; V: 29°; D: 60° |
| Angle Adjustment | Pan: 0° to 352°; Tilt: 0° to 90° |
Illumination
| Parameter | Detail / Value |
| Illumination Distance | Up to 40 m (131.23 ft) (Warm light) |
| Illuminator Number | 4 (Warm light) |
P3D-3F-PV-P – Intelligence & Functions
| Parameter | Detail / Value |
| Human Detection | Yes |
| Vehicle Detection | Yes |
| Abnormal Sound Alarm | Yes |
P3D-3F-PV-P – Audio and Video
| Parameter | Detail / Value |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Sub stream only) |
| Video Frame Rate |
Main stream: 2304 × 1296@(1–20 fps)
Sub stream: 640 × 360@(1–25/30 fps)
(Max. frame rates per stream; subject to total encoding capacity for multiple streams)
|
| Video Bit Rate | H.265: 512 kbps–4096 kbps |
| Day/Night | Color/B/W |
| WDR | 120 dB True WDR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Image Rotation | 0°/180° |
| Built-in MIC | Yes, built-in Mic |
| Built-in Speaker | Yes, built-in speaker |
| Audio Compression | G.711a; G.711Mu; PCM; G.726 |
P3D-3F-PV-P – Network & Storage
| Parameter | Detail / Value |
| Network Port | RJ-45 (10/100 Base-T) |
| Wi-Fi | IEEE 802.11b/g/n 2.4 G, EIRP≤20 dBm@2400–2483.5 MHz (CE) |
| Wi-Fi Pairing | Bluetooth pairing |
| Storage | Micro SD card (support max. 256 GB) |
| Management Software | Smart PSS Lite; DSS; DMSS |
| Mobile Client | Android; iOS |
P3D-3F-PV-P – General & Structure
| Parameter | Detail / Value |
| Certifications |
CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
CE-RED: Radio Equipment Directive 2014/53/EU
|
| Ingress Protection | IP66 |
| Power Supply | 12 VDC (±30%); PoE (802.3af) |
| Power Consumption |
Basic: 2.3 W (12 VDC); 3.1 W (PoE)
Max.: 9.8 W (12 VDC); 11.1 W (PoE) (intelligence on + WDR + illuminator + PT rotation + speaker)
|
| Operating Temperature | –30 °C to +50 °C (–22 °F to +122 °F) |
| Operating Humidity | ≤95% (RH) |
| Buttons | Reset button |
| Casing Material | Plastic |
| Product Dimensions | 159.4 mm × 119.1 mm × 210 mm (6.28″ × 4.69″ × 8.27″) (L × W × H) |
| Net Weight | 585 g (1.29 lb) |
