6-Port Unmanaged Desktop Switch with 4-Port PoE
1.Complies with IEEE802.3af & IEEE802.3at, up to 30W for single port 2.Working in temperatures from-10°C to +55°C
-
CS4010-8GT-60 10-Port Cloud Managed Desktop Gigabit Switch with 8-Port PoE
Dahua CS4010-8GT-60
– Dahua CS4010-8GT-60 is a 10-port cloud managed desktop Gigabit switch offering local web and DoLynk Care cloud management
– Features 8 × RJ-45 Gigabit PoE ports and 2 × RJ-45 Gigabit uplink ports for full Gigabit connectivity throughout
– Delivers a 60W total PoE budget with IEEE802.3af/at on all PoE ports, plus additional Hi-PoE on the orange port
– Includes a DIP switch to quickly toggle Cloud-Managed mode, PoE Watchdog, and 250-meter Long Distance PoE
– Supports VLAN, STP, RSTP, and link aggregation for organized, stable network traffic
– Operates reliably across a wide temperature range of -10°C to +55°C with support for desktop or wall-mount installation -
PFM920I-6U-C UTP CAT6 Cable
PFM920I-6U-C – UTP CAT6 Network Cable
– 305 m (1000 ft) per carton, PoE compatible
– High-purity oxygen-free copper conductor (99.97%), 23AWG
– Customized PVC outer sheath, CE CPR Eca flame-retardant certified
– Characteristic impedance 100 ± 15Ω for standard CAT6 performance
– Near-end crosstalk ≥39.3 dB per 100 m at 250 MHz
– HDPE insulation with built-in rip cord for easy termination
– Meets ISO/IEC 11801-1-2017 and IEC 61156-5-2009 standards
– Operating temperature –20°C to +60°C
– 10-year warranty -
PFM920I-6UN-C UTP CAT6 Cable
DH-PFM920I-6UN-C – UTP CAT6 Network Cable
– 305 m (1000 ft) per carton, PoE compatible
– High-purity oxygen-free copper conductor (99.97%)
– Customized PVC outer sheath, CE CPR Eca flame-retardant certified
– Characteristic impedance 100 ± 15Ω for standard CAT6 performance
– Near-end crosstalk ≥39.3 dB per 100 m at 250 MHz
– HDPE insulation with built-in rip cord for easy termination
– Operating temperature –20°C to +60°C
– Passes IEC 60332-1-2 vertical fire propagation test
– 10-year warranty -
PFM920I-6UN-CN UTP CAT6 Cable
PFM920I-6UN-CN – UTP CAT6 Network Cable
– 305 m (1000 ft) per carton, PoE compatible
– Oxygen-free copper conductor (99.95% purity), 24AWG
– Customized PVC outer sheath, CE CPR Eca flame-retardant certified
– Characteristic impedance 100Ω ± 15Ω (4–250 MHz)
– HDPE insulation with colour-coded twisted pairs
– Extended operating temperature –20°C to +75°C
– Passes low-temperature bending and heat shock tests
– Available in grey, white, or orange sheath colours
– 10-year warranty -
PFS3010-8ET-96 10-Port Unmanaged Desktop Switch with 8 Port PoE
Dahua PFS3010-8ET-96
– Dahua PFS3010-8ET-96 is a 10-port unmanaged desktop PoE switch built for high-power, plug-and-play network deployment
– Features 8 × 10/100 Mbps PoE ports and 2 × 10/100/1000 Mbps Gigabit uplink ports, with a total PoE budget of 96W
– Supports IEEE802.3af, IEEE802.3at, Hi-PoE, and IEEE802.3bt standards, with up to 90W available on the dedicated port
– Includes Intelligent PoE management and a PoE watchdog for automatic monitoring and device recovery
– Long Distance PoE mode extends transmission on ports 1–8 up to 250 meters
– Operates reliably in temperatures from -10°C to +55°C for flexible installation environments -

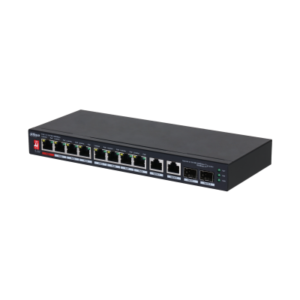

PFS3210-8GT2GF-96 10-Port Unmanaged Desktop Gigabit Switch with 8-Port PoE
Dahua PFS3210-8GT2GF-96
– Dahua PFS3210-8GT2GF-96 is a 10-port unmanaged desktop Gigabit switch built for high-power, plug-and-play PoE deployment
– Features 8 × 10/100/1000 Mbps PoE ports and 2 × 1000M SFP uplink ports for full Gigabit and fiber connectivity
– Delivers a total PoE budget of 90W, with the red port supporting IEEE802.3bt and Hi-PoE for high-demand devices
– Offers two transmission modes (Extend Mode On/Off) for flexible installation based on distance requirements
– Includes PoE watchdog for automatic detection and recovery of unresponsive connected devices
– Operates reliably across a wide temperature range of -10°C to +55°C for diverse installation environments -
S3006-4ET-36 6-Port Unmanaged Desktop Switch with 4-Port PoE
Dahua S3006-4ET-36
– Dahua S3006-4ET-36 is a 6-port unmanaged desktop PoE switch designed for simple, plug-and-play network deployment
– Features 4 × PoE ports (IEEE802.3af/at) and 2 × RJ45 uplink ports, supporting up to 30W per port and 36W total PoE power
– Long Distance PoE mode extends transmission on ports 1–4 up to 250 meters via a DIP switch toggle
– Operates reliably in temperatures from -10°C to +55°C, suited for varied installation environments
– Compact, lightweight metal casing supports both desktop and wall-mount installation
– Built-in static and lightning protection ensures durability against power surges and electrical interference -
S3006-4ET-60 6-Port Unmanaged Desktop Switch with 4-Port PoE
Dahua S3006-4ET-60
– Dahua S3006-4ET-60 is a 6-port unmanaged desktop PoE switch built for high-power, plug-and-play deployment
– Features 4 × 10/100 Mbps PoE ports and 2 × 10/100 Mbps uplink ports, with a total PoE budget of 60W (Hi-PoE)
– Compliant with IEEE802.3af and IEEE802.3at, supporting devices that require higher power output
– Long Distance PoE mode extends transmission on ports 1–4 up to 250 meters via onboard DIP switch
– Operates reliably in temperatures from -10°C to +55°C for flexible indoor installation
– Durable metal enclosure supports both desktop and wall-mount installation options -
S3006-4GT-36 6-Port Unmanaged Desktop Gigabit Switch with 4-Port PoE
Dahua S3006-4GT-36
– Dahua S3006-4GT-36 is a 6-port unmanaged desktop Gigabit switch built for fast, plug-and-play PoE deployment
– Features 4 × 10/100/1000 Mbps PoE ports and 2 × 10/100/1000 Mbps uplink ports for full Gigabit speed throughout
– Supports IEEE802.3af and IEEE802.3at standards, delivering up to 30W per port and 36W total PoE budget
– Enables long-distance transmission for installations where endpoints sit further from the switch
– Operates reliably across a wide temperature range of -10°C to +55°C for flexible deployment
– Fanless, full-metal enclosure supports silent operation and both desktop and wall-mount installation -

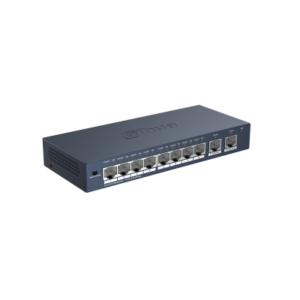

S3010-8ET2ET-60 10-Port Unmanaged Desktop Switch with 8-Port PoE
Dahua S3010-8ET2ET-60
– Dahua S3010-8ET2ET-60 is a 10-port unmanaged desktop PoE switch built for larger, plug-and-play network deployments
– Features 8 × 10/100 Mbps PoE ports and 2 × 10/100 Mbps uplink ports, supporting up to 30W per port and 60W total PoE power
– Compliant with IEEE802.3af and IEEE802.3at standards for broad device compatibility
– Long Distance PoE mode extends transmission on ports 1–8 up to 250 meters via onboard DIP switch
– Operates reliably in temperatures from -10°C to +55°C, suited for varied installation environments
– Durable sheet metal casing supports both desktop and wall-mount installation -
S3010-8ET2GT-90 10-Port Unmanaged Desktop Switch with 8-Port PoE
Dahua S3010-8ET2GT-90
– Dahua S3010-8ET2GT-90 is a 10-port unmanaged PoE switch built for plug-and-play surveillance and business networking
– Features 8 × 10/100 Mbps PoE ports and 2 × Gigabit uplink ports for reliable power and fast data transmission
– Delivers a total PoE budget of 90W to support multiple cameras and network devices simultaneously
– Gigabit uplink ports maintain high-speed links to NVRs, routers, or core network equipment
– Unmanaged, plug-and-play design enables quick installation without complex configuration
– Compact form factor suits homes, offices, retail sites, and small to medium CCTV systems
