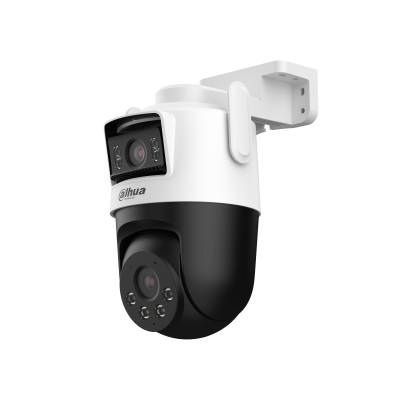

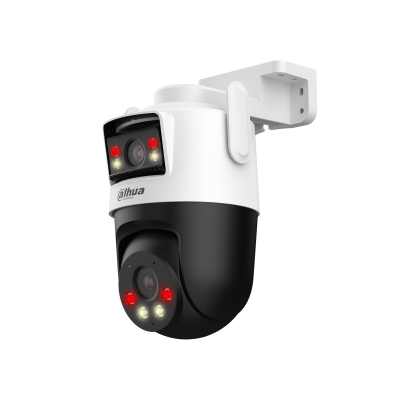

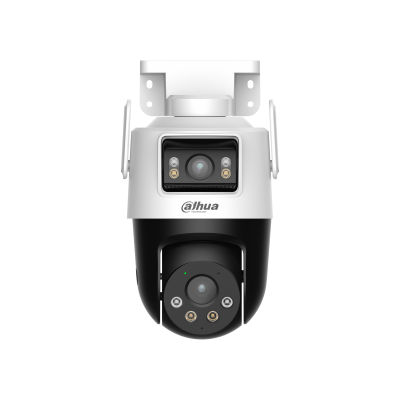

The Dahua P3D-3F-PV is a 3+3MP outdoor Wi-Fi dual-lens pan and tilt camera from the Picoo Dual Series, combining a fixed lens with a motorized PT lens for simultaneous multi-angle outdoor monitoring. This unique pairing allows one camera to cover two different areas at once, offering coverage that a single fixed lens simply cannot match.
Leveraging its dual lenses, the Dahua P3D-3F-PV performs smart detection using AI human and vehicle detection, effectively minimizing false alarms caused by moving branches, shadows, or passing animals outdoors. This is especially valuable in exterior settings where environmental movement is constant.
With the assistance of the PT lens, the Dahua P3D-3F-PV automatically tracks moving targets, keeping intruders or visitors in view as they move through the monitored area. This active tracking capability adds a layer of intelligence beyond standard fixed-lens outdoor cameras.
Both lenses on the Dahua P3D-3F-PV deliver clear 3MP image quality, ensuring detailed footage from two perspectives at the same time. This makes it a strong fit for small commercial spaces like shops and restaurants, where covering an entrance and a wider area simultaneously matters.
Security response is built directly into the camera, triggering sound and light alarms the moment an intrusion is detected. Notifications are sent promptly to the mobile client, keeping users informed of activity around their property no matter where they are.
Built for outdoor durability, the Dahua P3D-3F-PV is designed to withstand exposure to the elements while maintaining reliable performance. Its Wi-Fi connectivity and app-based management make installation and daily use straightforward for both business and residential settings.
With microSD card support for local recording and DMSS app integration for remote monitoring, the Dahua P3D-3F-PV offers a comprehensive, multi-angle outdoor surveillance solution for anyone needing wider coverage from a single, intelligent camera.
P3D-3F-PV – Camera Specifications (2.8 mm + 6 mm Variant)
Fixed Lens
| Parameter | Detail / Value |
| Image Sensor | 1/2.8″ CMOS |
| Max. Resolution | 2304 (H) × 1296 (V) |
| Illumination Distance |
Up to 30 m (98.43 ft) (IR)
Up to 20 m (65.62 ft) (Warm light)
|
| Illuminator Number | 2 (IR LED); 2 (Warm light) |
| Angle Adjustment | -10° to 15° |
| Lens Type | Fixed-focal |
| Focal Length | 2.8 mm |
| Max. Aperture | F1.6 |
| Field of View | H: 95°; V: 53°; D: 110° |
PT Lens
| Parameter | Detail / Value |
| Image Sensor | 1/2.8″ CMOS |
| Max. Resolution | 2304 (H) × 1296 (V) |
| Illumination Distance |
Up to 50 m (164.04 ft) (IR)
Up to 40 m (131.23 ft) (Warm light)
|
| Illuminator Number | 2 (IR LED); 2 (Warm light) |
| Angle Adjustment | Pan: 0° to 352°; Tilt: 0° to 90° |
| Lens Type | Fixed-focal |
| Focal Length | 6 mm |
| Max. Aperture | F1.6 |
| Field of View | H: 53°; V: 29°; D: 62° |
P3D-3F-PV – Camera Specifications (3.6 mm + 3.6 mm Variant)
Fixed Lens
| Parameter | Detail / Value |
| Image Sensor | 1/2.8″ CMOS |
| Max. Resolution | 2304 (H) × 1296 (V) |
| Illumination Distance |
Up to 30 m (98.43 ft) (IR)
Up to 30 m (98.43 ft) (Warm light)
|
| Illuminator Number | 2 (IR LED); 2 (Warm light) |
| Angle Adjustment | -10° to 15° |
| Lens Type | Fixed-focal |
| Focal Length | 3.6 mm |
| Max. Aperture | F1.6 |
| Field of View | H: 86°; V: 46°; D: 103° |
PT Lens
| Parameter | Detail / Value |
| Image Sensor | 1/2.8″ CMOS |
| Max. Resolution | 2304 (H) × 1296 (V) |
| Illumination Distance |
Up to 30 m (98.43 ft) (IR)
Up to 30 m (98.43 ft) (Warm light)
|
| Illuminator Number | 2 (IR LED); 2 (Warm light) |
| Angle Adjustment | Pan: 0° to 352°; Tilt: 0° to 90° |
| Lens Type | Fixed-focal |
| Focal Length | 3.6 mm |
| Max. Aperture | F1.6 |
| Field of View | H: 86°; V: 46°; D: 103° |
P3D-3F-PV – Intelligence & Functions
| Parameter | Detail / Value |
| Human Detection | Yes |
| Vehicle Detection | Yes |
| Active Deterrence | Siren and light active deterrence |
P3D-3F-PV – Audio and Video
| Parameter | Detail / Value |
| Video Compression | H.265 |
| Video Frame Rate |
Main stream: 2304 × 1296@15 fps
Sub stream: 640 × 360@15 fps
(Max. frame rates per stream; subject to total encoding capacity for multiple streams)
|
| Video Bit Rate | H.265: 512 kbps–4096 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| WDR | DWDR |
| Motion Detection | Yes |
| Image Rotation | 0°/180° |
| Built-in MIC | Yes, built-in Mic |
| Built-in Speaker | Yes, built-in speaker |
| Audio Compression | G.711a |
P3D-3F-PV – Network & Storage
| Parameter | Detail / Value |
| Network Port | RJ-45 (10/100 Base-T) |
| Wi-Fi | IEEE 802.11b/g/n/ax 2.4000~2.4835 GHz, 2.4G, ≤20dBm |
| Wi-Fi Pairing | Bluetooth pairing |
| Storage | Micro SD card (support max. 256 GB) |
| Management Software | DMSS |
| Mobile Client | iOS; Android |
P3D-3F-PV – General & Structure
| Parameter | Detail / Value |
| Certifications | CE |
| Ingress Protection | IP66 |
| Power Supply | 12 VDC |
| Power Consumption |
Basic: 2.3 W
Max.: 10 W (pulling stream + IR + siren & light active deterrence)
|
| Operating Temperature | –30 °C to +50 °C (–22 °F to +122 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Casing Material | Plastic |
| Product Dimensions | 159.4 mm × 119.1 mm × 210 mm (6.28″ × 4.69″ × 8.27″) (L × W × H) |
| Net Weight | 585 g (1.29 lb) |
